Home
Page • About
Me • Before
& After Images • Services
Offered • Repair
Issues • Resources
Frequently
Asked Questions • Silver
Care • Silver
Glossary • Shop
Views • The
Library
Testimonials • Work
Order.doc /.pdf • Contact
|
You've arrived at the Web's most comprehensive site devoted to safely cleaning, polishing, protecting, and storing your silver. I've been a professional restorer and conservator since 1984, and I've done all the research for you. I teach best practices as well as "do no harm." You've come to the right place! |
Updated
11.24.2022
The Care of Silver is ©
Copyright Protected
space
|
Silver
Polish Abrasion Ratings |
|
|
|
Chemical
dips are dangerous and destructive! |
|
1. Wax any porous attachments – such as wooden handles and ivory insulators – prior to cleaning; 2. Rinse the object under warm running water while gently wiping it with a cellulose sponge to remove any particulate. If dried polish has accumulated in recessed or ornamental areas, it should be lightly tapped out (also under running water) with a natural-bristle brush, such as a white china bristle brush, after the polish has been rehydrated. (See other brush options here.) Dry the object immediately with a cotton towel. 3. Remove any remaining grime with hand sanitizer using cotton balls, cotton makeup pads, and/or cotton swabs. This step will remove light tarnish as well as grime. 4. Remove any sanitizer residue with a plant-based window cleaner, such as Better Life Glass Cleaner. Dry the piece immediately with a cotton towel; 5. If tarnish remains, use Herman's Simply Clean Collectors Silver Polish with a cellulose sponge, cotton balls, makeup pads, and/or cotton swabs, rubbing the object in a straight back-and-forth manner so as to maintain a uniform appearance. (Cotton balls and makeup pads will remove tarnish more quickly than a sponge will.); 6. Rinse with warm water and dry immediately with a cotton towel to avoid water spotting. |
|
1. To avoid damaging your silver, clean it only when you don't feel rushed. I've restored many a candelabrum arm that was broken off in haste. Also, be aware that if you're wearing a ring, that ring will scratch when in contact with the piece you're working on. 2. If you are looking for someone to clean your silver, choose an individual with experience. Ask about what methods and polishes they will use. If you require assistance, please contact me. 3. Always polish/clean your silver on a sturdy work surface covered by a cotton towel as illustrated in this image. If the work surface is made of wood or other porous material, lay a piece of plastic under the towel.
4. Always remove
dried polish and grime FIRST! You may find that this is all
that's required in bringing back the luster to your silver. Should it
require polishing, you'll find it much easier when removing the
tarnish, even with the most gentle
polishes. 6. NEVER use chemical dips (see section on Chemical Dips). 7. Before using your polish, please refer to the Silver Polish Abrasion Ratings page as you may be using a polish that is much too abrasive. 8. Use untreated cotton gloves or form-fitting nitrile gloves when handling silver – finger prints contribute to tarnishing. 9. Always try to support a teapot or coffeepot by the bottom when holding it by the handle. 10. If your silver is tarnished to an extent that it requires a commercial polish, use only polishes made specifically for silver. (See section on Cleaning Silver.) 11. Don't be stingy with cotton balls or makeup pads (Updated 12.16.2020: I prefer Equate's Premium Woven Exfoliating Rounds as they're much stronger than regular pads.) and constantly rotate them to expose clean material. 12. To remove tarnish in tight spaces, use a cotton swab or wrap a wooden popsicle stick or skewer with a cotton makeup pad or cotton ball. You can also use a flattened cotton swabs to clean between fork tines. 13. Cleaning silver in a dishwasher is not advised, as the heat and harsh detergents will eventually whiten the silver, causing it to require professional refinishing. In addition, dishwashers can cause blades to explode out of hollow-handled knives. (See section on Silver & Dishwashers.) 14. Silver flatware used on a daily basis will require little or no polishing. Hand wash with a non-lemon-scented phosphate-free detergent and dry them immediately to avoid spotting. 15. When storing your flatware, rotate the pieces so they will wear uniformly.
16. Salt is extremely corrosive to silver; always empty vessels and wash them when not used on a regular basis. (See section on Salt Encrustation.) 17. When cleaning or inserting a candle into a candelabrum, support the arms from underneath to avoid distortion or possible breakage. 18. Do not cut food on a solid silver or silver-plated tray. Cutting lines (and possibly linear dents) will decrease the object's value. Plus, on a plated piece, you will very easily cut through the plating, exposing the base metal. Instead, cut the meat on a cutting board and place it on the tray. 19. If your objects contain ivory or wood, apply Staples Crystal Clear Wax (not the stationery store) on those surfaces. Go here for instructions. 20. Hold a piece of white paper or plastic up to the piece you're polishing as the reflection will reveal if there is additional tarnish that needs to be removed. Just be sure you are not mistaking firestain for tarnish. (Read about firestain here.) 21. Silver is best stored in treated flannel bags which draw away the sulfur from the silver it's protecting. Alternatively, you can wrap your silver in acid-free tissue or paper then placed in a Ziploc or other polyethylene bag with an anti-tarnish strip. (Go here for complete storage methods.) Keep the silver in a dry, safe area and use silica gel to help absorb dampness. Cutlery should be wrapped individually and placed side by side, rather than piled up. 22. IMPORTANT! When removing tarnish, always invest more time using a gentle silver polish over getting quicker results with a more abrasive silver polish. Ninety-nine percent (99%) of tarnish removed from silver I work on is accomplished with either Blitz Silver Shine Polish or Herman's Simply Clean Collectors Silver Polish. 23. If you see any exposed copper, lead, or white metal inside a piece of silver you drink from or flatware you eat off of, don't use it; the exposed area or entire piece will require re-plating. Read more here. If you're ever in doubt about the the abrasiveness of a silver polish, visit Silver Polish Abrasion Ratings. Additional Advice for Flood Victims
24. If your silver was involved in a flood, gently shake any piece that might have hollow spaces (e.g., sockets on teapots and coffeepots that contain ivory heat insulators or wooden handles, hollow handles on some flatware, hollow rims, and candlestick cups with double walls). If you can hear water swishing within these areas, contact a qualified restorer (for referrals, ask a museum with a large silver collection or an antique silver dealer). 25. If the object has no hollow areas, rinse it well to remove any dirt. When the piece feels clean to the touch, wash it with a cellulose sponge using a non-lemon-scented, phosphate-free detergent and warm water. You can also use hand sanitizer or 70% isopropyl alcohol and remove any residue with the Better Life Natural Glass Cleaner. Dry the piece immediately with a soft cotton towel and store in a Ziploc bag with an anti-tarnish strip and silica gel. 26. Rust may have started to develop on carbon steel knife blades of older pieces or on the worn edges of knife blades coated with silver. Do not use steel wool or Navel Jelly to remove the rust; rather, contact a silver restoration specialist as the blades will have to be gently cleaned then re-plated or replaced with stainless steel. When in doubt, STOP! Contact me before doing irreparable harm to your silver.

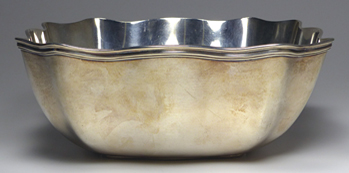

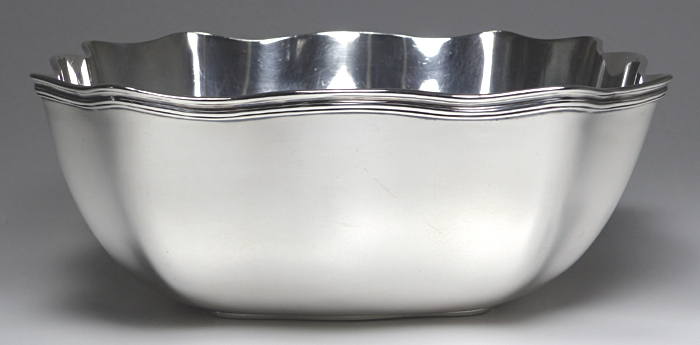

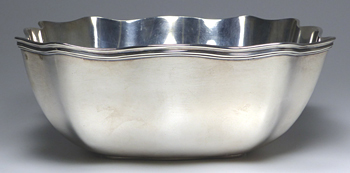

Cleaning and Polishing Silver © Silver, when properly maintained, will yield generations of enjoyment. The following cleaning instructions have been tried and proven in my silver restoration & conservation studio. They are suited for gold as well as silver. Silver-plated and gold-plated items should be treated very gingerly, as too-vigorous cleaning can remove the plating and expose the base metal. Tarnish is caused by contact with sulfur compounds, mainly hydrogen sulfide in the air. Relative humidity (RH) also affects the tarnishing rate. Other common culprits are:
Foods (partial list):
eggs, mayonnaise, onions, sour cream, mustard, garlic, poultry, fish,

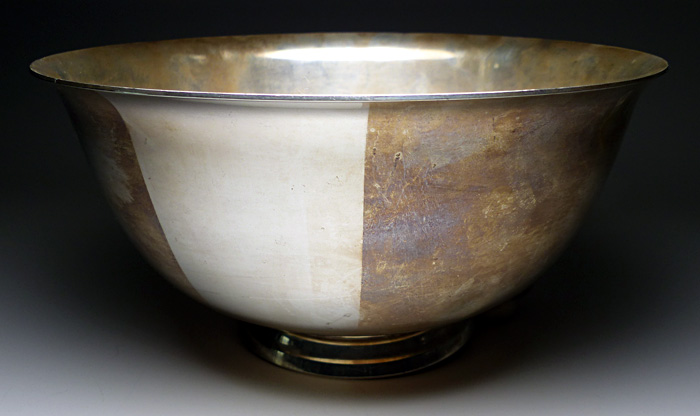

cabbage, bananas, coffee, chocolate, nuts Relative humidity (RH) also affects the tarnishing rate. For a given concentration of hydrogen sulfide, silver tarnishes faster as the RH climbs. As a result, silver is best stored in dry conditions (below 50% RH).Also, oily salts from fingers can cause corrosion patterns that may have to be professionally removed. BEFORE cleaning or polishing your silver: If your objects contain wood, ivory, etc., apply Staples Crystal Clear Wax. This will seal these components from rotting and drying out. Gently wash and dry your silver immediately after use. While washing, do not allow silver to come into contact with a metal sink, as that can cause scratching. (Use a plastic dishpan or line the sink with a towel.) Use a non-lemon-scented phosphate-free detergent and, to avoid water spots, towel-dry using a soft cotton dish towel or Selvyt cloth. Silver that is used frequently and washed in this manner will require infrequent tarnish removal. When storing your flatware, rotate the pieces so they will wear uniformly. Occasionally cleaning an object is preferred to waiting until heavy tarnish forms and polishes have to be employed. (All polishes have some degree of abrasion.) If tarnish has started you'll recognize it in its earliest stage if you hold a piece of white paper next to the object. You can sometimes remove this light tarnish in its very early stages by cleaning, not polishing. If tarnish has started to form, you will see a very light yellowish tint on the silver. Try removing this light tarnish with either diluted citrus-free Dawn Dishwashing Liquid, 100% plant-based Better Life Dish Soap on a cellulose sponge, a 100% plant-based glass cleaner like Better Life Natural Glass Cleaner, or aloe-free hand sanitizer on a cotton ball, makeup pad, or cotton towel. If the hand sanitizer leaves a residue, rinse it off with warm water or remove it with a moistened cotton towel, then dry immediately. If water doesn't work, use the dish soap or glass cleaner. Try this technique first as it will remove absolutely no metal. Try using the glass cleaner on your jewelry and other metal objects as well. Below: The left side of this sterling Revere bowl was cleaned with aloe-free hand sanitizer.
Solid gold objects may occasionally need grime and body oils removed. Objects that have tarnish are normally those where the gold has worn away, exposing the base metal. In both cases, use the same methods mentioned above for silver. Below: Tiffany sterling bowl that was cleaned with Better Life Natural Glass Cleaner (right). If tarnish remains use one of the Least Abrasive Silver Polishes.

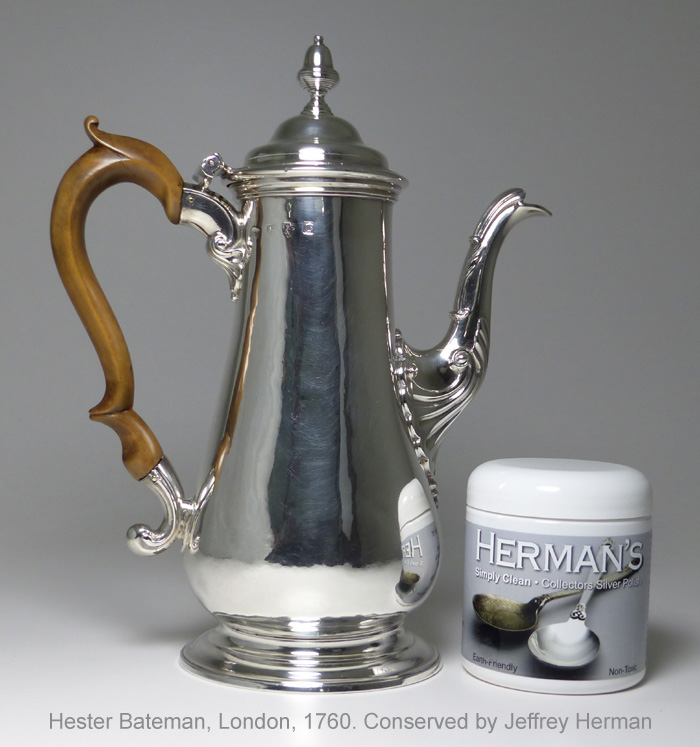

Below: After using Herman's Simply Clean Collectors Silver Polish.

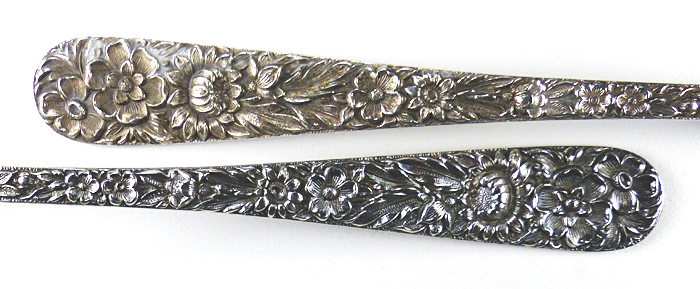

Below: Notice the difference in this grimy handle after using Better Life Natural Glass Cleaner and a light wiping with a horsehair brush. This is another instance where cleaning is preferred to polishing. Also, it would have taken added time to remove the grime with silver polish, especially in the low-lying areas.
For another example of what cleaning will accomplish as opposed to polishing, click here. Check out this video for some basic polishing instructions using hand sanitizer and Blitz Silver Shine Polish. Always remove dried polish and grime from crevices and ornament on previously polished pieces before repolishing. Run warm (not hot) water over the dried polish and use a tampico (made from fibers of the agave plant), horsehair, or natural white boar bristle brush (found in most hardware stores) and lightly "tap" out the polish. (Wrap the boar ferrule with electrical tape to avoid scratching the piece you're working on.) Shorten the bristles if you need added stiffness (see below). This will lift the polish away from the object with no or minimal abrasion. Never use a dry brush when removing dry polish as it will create scratches. If there are porous elements on your piece (wood, ivory, other of pearl, etc.), wet a cotton swab and apply the water to the polish. Allow the polish to soften then lift it out by tapping with a wet brush. A wet toothpick will get into the smallest areas.
This horsehair flux brush will get into tight areas and they're available in many sizes. (Wrap the handle with electrical tape to avoid scratching the piece you're working on.).
If your piece is more tarnished, use one of the commercial silver cleaners, some of which provide tarnish protection. Use the least abrasive product possible. Polishes that are meant to be washed off are less abrasive because they use a liquid to suspend the polishing ingredients. The least abrasive of the commercial cleaners are Blitz Silver Care Polish (preferred for its combination of tarnish protection and its ease of use: apply/rinse/buff and apply/let dry/buff); Herman's Simply Clean Collectors Silver Polish (preferred for maintaining the object's original finish & extremely mild abrasiveness); 3M's Tarni-Shield Silver Polish, or Twinkle Silver Polish. These are all non-toxic. If you are thinking of using polishes other than what I just listed, please please refer to Silver Polish Abrasion Ratings. If, after cleaning your silver (not silverplate) piece, a purplish stain remains, do not mistake this stain for tarnish! Attempting to remove it will only damage your prized piece. This is firestain, which is oxidized copper, and can be found on many pre-colonial through early twentieth century pieces. It is not generally seen on pieces that have been produced by the large American silver companies after the early 1900s, but many one-person silversmithing shops still use this technique. I will not get into the technicalities of firestain here, but the stain is usually obscured with fine silver either by silver plating the object or through a process called depletion. The firestain under this fine silver layer, which may be a few thousandths of an inch thick, may not show up until after many years of polishing. Consult with a restoration silversmith if this happens to one of your pieces. Use the following method if you are polishing near unwaxed or cracked components (wood, ivory, mother of pearl, felt, etc.) or with no available water.
Wooden handles & finials, ivory insulators, and felt used on the bottoms of candlesticks and compotes can become damaged when introduced to excess moisture. For objects with such components, use Blitz Silver Shine Polish. Use this polish also for hollow areas that will not dry (beaded rims, handle sockets with minute holes, etc.), or if there is no source of water. Use a large cotton ball, cotton makeup pad, or cotton swab with the smallest amount of polish necessary and rotate the ball or pad regularly to expose unused surfaces. (I prefer Target's exfoliating cotton rounds because they're well made and hold together longer than regular makeup pads.) Silver polish combined with the silver sulfide (tarnish) will quickly flatten and clog the fibers which will make the applicator less efficient. Rub the object in a straight, back-and-forth manner so as to maintain a uniform appearance. Avoid rubbing in a circular motion. Let the polish dry and remove it with a Selvyt cloth or cotton dish towel. Selvyt is a lint-free, untreated, 100% cotton wiping cloth with a soft finish which is also excellent for highlighting ornament with no polish applied. Tip: If you're worried about getting porous attachments wet, try removing the polish you just used with a moist cellulose sponge instead of rinsing that area. Here is a valuable resource for the care and handling of ivory: https://www.si.edu/mci/english/learn_more/taking_care/ivory.html. Use the following method if you are polishing an object without porous components or components that have been sealed with Staples Crystal Clear Wax.

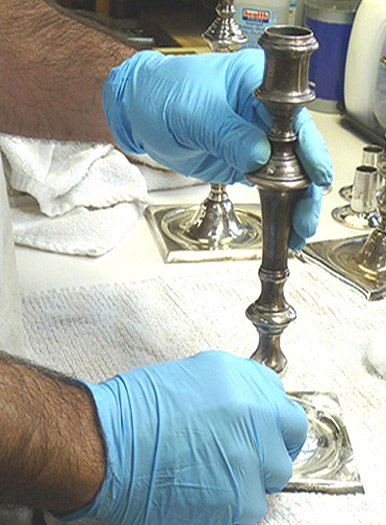

Rinse the object first to remove any pollution that may have settled on the object. These contaminants, which may be more abrasive than the polish you will be using, can actually scratch the silver if rubbed into the surface. Use a cellulose sponge (not Scotch-Brite plastic sponges or the soft plastic sponges that come with some silver polishes) and apply Blitz Silver Shine Polish or Herman's Simply Clean. If you feel it necessary to protect your hands from moisture, use nitrile gloves which contain no ingredients that tarnish silver. Do not use latex gloves! Rub the object in a straight, back-and-forth manner so as to maintain a uniform appearance. Avoid rubbing in a circular motion. Rotate the sponge regularly to expose unused surfaces then rinse. If the tarnish is particularly heavy, a cotton ball or cotton makeup pad will speed the removal process. Flattened cotton swab heads with very little silver polish applied are excellent for cleaning between fork tines. Silver polish can also be used on unflattened cotton swabs to remove tarnish from inside coffeepot spouts and the like. Below: I'm wearing nitrile gloves and a cotton ball with Earth Friendly Silver Polish to remove tarnish from this Paul Revere Beaker. (Earth Friendly was discontinued which is why I developed Herman's Simply Clean Collectors Silver Polish.)
Dried polish can be removed by patting the area with a warm wet cotton ball or a wet horsehair or natural boar bristle brush. Rinse the object with warm water or wipe with a moist cellulose sponge, ringing out after every wipe, then dry with a Selvyt cloth or cotton dish towel immediately to avoid spotting. I advise using heavyweight cotton inspection gloves to avoid finger prints when cleaning and storing your freshly cleaned objects. I recommend washing them first to remove any processing chemicals.
How to Polish Chain Mail (Mesh) ©
Chain mail (also known as chainmail or chain maille) is one of those items that can perplex most collectors when it comes to polishing. Some will reach for a chemical dip because it removes tarnish quickly, but will end up results like these. Others will use a paste polish that may end up drying within the mesh after buffing. The following instructions are for polishing chain mail without fabric attachments. Chain mail with fabric attachments requires assistance from a conservator. Place a cotton bar mop (a kitchen towel with a low pile), on your kitchen counter. If the chain mail is very dirty, run it under warm water and dry it first. If it has dried polish, run it under warm water and tap out the polish with one of these brushes, dry it, then place the object on the towel. If there is very light tarnish, try using a 100% plant-based glass cleaner like Better Life Natural Glass Cleaner (my personal favorite), or aloe-free hand sanitizer. If the hand sanitizer leaves a residue, rinse it off with warm water or remove it with a moistened cotton towel, then dry immediately. If water doesn't work, use the glass cleaner then gently pat dry with a clean bar mop. Try this technique first, as it will remove absolutely no metal. If this technique doesn't remove the tarnish, use Blitz Silver Shine Polish on a cotton makeup pad or bar mop, constantly exposing clean areas to clean with. Remove the polish with warm water (again, try the hand sprayer) then wipe the object with a bar mop until you see no polish left on the towel. The Blitz will leave a non-toxic, invisible tarnish protectant.
Use the same instructions as polishing chain mail. If the filigree has heavy tarnish on its edges, try using a piece of smooth leather coated with a mild silver polish. Rinse under warm water and pat-dry immediately or use compressed air to blow-out any remaining moisture. You can see before and after images of the above basket here.
Caring for Mixed Metal Objects ©

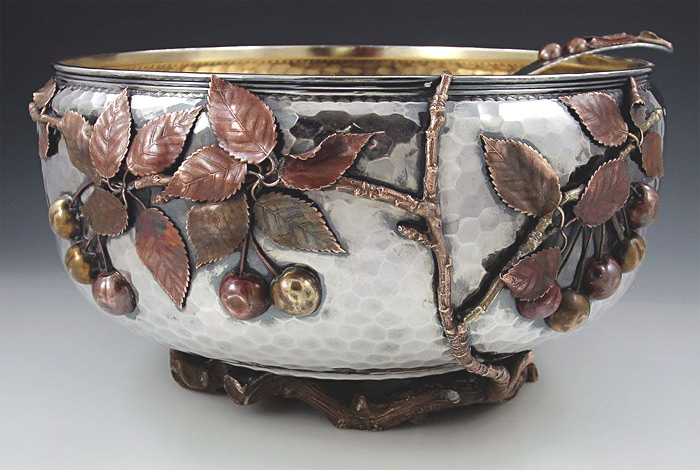

Mixed metal objects, like the Gorham bowl above with beautifully aged coloring and perfectly polished silver, require more thought prior to cleaning and polishing. Many of these pieces may have attachments made of copper, brass, gold, and combinations of metals. Some have patinated copper with applied silver or gold, or cast iron with silver applique. I have seen many objects that have been totally polished without taking into consideration of possible patina damage. This had led to the removal of complex applied patinas to the applique which should never have been polished. Some of these patinas can never be duplicated as they may have changed with age or the formulas were never put in writing. Remember, silversmithing, in addition to a craft, is an art. And as in any work of art, sensitivity to the surface is critical. To avoid damaging the patina on this type of object, please contact me for assistance with its care.
Toothpaste should NEVER be used as a silver polish. Some toothpastes contain baking soda or other ingredients which are much too abrasive; even trace amounts can cause serious damage. Use polishes that are specifically formulated to remove tarnish from silver.
Chemical dips, such as Tarn-X, work by dissolving the tarnish on an object at an accelerated rate They work by dissolving the tarnish (and silver!) on an object at an accelerated rate. Chemical dips will quickly remove factory-applied patinas (if left in the solution for more than a few seconds) or gradually (if dipped quickly each time the object requires cleaning). You'll notice a soft white surface develop over time. Chemical dips will quickly strip the shine from silver, leaving a dull, lifeless appearance. Chemical dips will cause pitting of the object's surface. These surface defects will act like a sponge and more readily absorb tarnish-producing gases and moisture. The object will eventually require professional polishing and possibly repatination to restore the original finish. Chemical dips are made up of acidified thiourea (a strongly suspected carcinogen). Acids are corrosive and will damage silver, niello, bronze, stainless steel knife blades, and organic materials such as wood and ivory. See the results from chemical dips here.

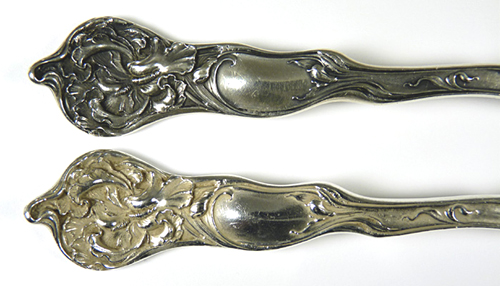

Above: The top sterling fork was left unpolished. The lower fork is another piece from the same lot that was that was subjected to the aluminum foil technique for only two minutes, resulting in stripped factory-applied patina. The whiteness is the result from copper that was etched (as seen under 10X magnification) from the sterling, leaving fine silver behind. Here's another shocking example. This process, known as electrochemical (galvanic) reduction, uses aluminum foil (or an aluminum plate); a ceramic or other non-heat-sensitive bowl or pan; sodium carbonate (washing soda) or sodium bicarbonate (baking soda); and boiling water. The aluminum is placed in the bottom of the bowl with either the washing soda or baking soda distributed on the aluminum surface. Boiling water is then poured over the powder and the sterling, coin silver, .800 (or other silver-copper alloy) object is immersed. When the object comes into contact with the aluminum in the solution, the tarnish (silver sulfide) is converted back to silver. And as with silver dips, factory-applied patinas will be dissolved. These pieces will eventually require repatinating. Case in point: This action will happen to both tarnished and polished silver. (Note: washing soda etches more severely than baking soda.) Pieces cleaned may tarnish more quickly than silver that has been polished with a paste or liquid, for the object's rough surface will act like a sponge and more readily absorb tarnish-producing gases and moisture. This same solution can also seep into hollow areas such as coffeepot and teapot handle sockets, unsoldered spun beads around the tops and bottoms of some holloware, and weighted pieces with minute holes that developed from over polishing. Another not-so-obvious problem is scratching of the object when dragged over the aluminum. For all these reasons this tarnish removal technique is not recommended.

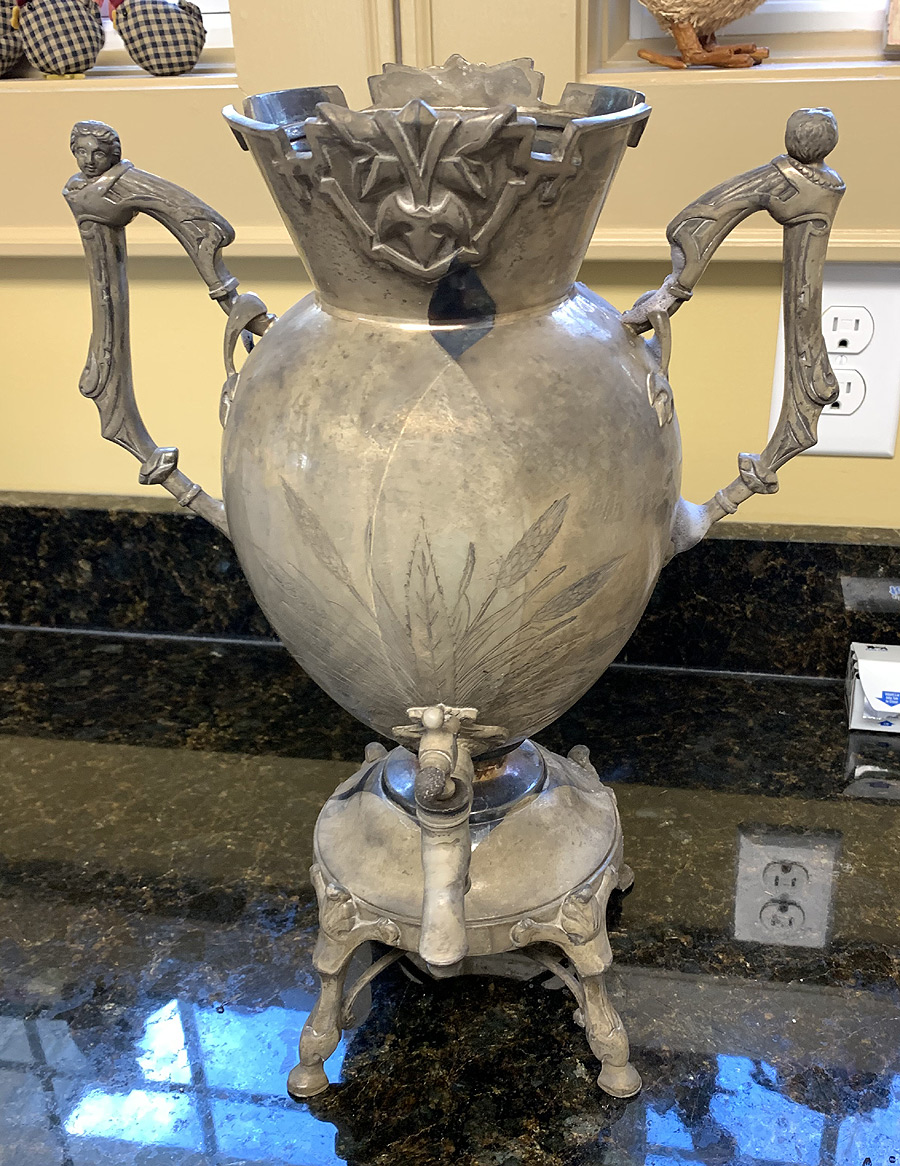

Place the pot in the sink with a cotton towel underneath and fill the pot with warm water. Drop in one five-minute denture cleaning tablet (about five cents each) per two cups of water. Let stand for ten minutes. If it looks like the pot may overflow because of the effervescence, pour out some liquid through the spout (don't allow the liquid to run down the outside of the pot). When the ten minutes is up, empty the pot through the spout then rinse with warm water. You may find that the effervescing action of the tablets may remove only the grime and not the stains. Use a moist cellulose sponge and non-lemon-scented phosphate-free detergent to remove any remaining grime, then rinse with warm water. If you need more scrubbing power, use the natural fibers of 3M's Scotch-Brite Greener Clean Sponge which are more gentle than their Scotch-Brite Non-Scratch Scrub Sponge. If the pot opening isn't big enough to fit your hand, make a swab by wrapping the sponge or pad on the end of a wooden dowel and secure the upper end with electrical tape. If stains remain, moisten the sponge (not the scrub side) and apply a liberal amount of Wright's Silver Cream, then wipe away the stain and rinse the pot with warm water. Wright's is an excellent cleaner for this task because it's much less abrasive than commercial cleaners that are not meant specifically for silver. Don't use powdered abrasive cleaners as they will impart fine scratches which will attract more dirt. Don't use steel wool (too abrasive and rust may result on the bottom), Scotch-Brite abrasive pads or dips (too toxic – see section on Chemical Dips). A cotton swab with a small amount of Wright's will remove stains within the spout opening. Fill the pot with warm water and rinse out any polish that may remain in the spout.
Cleaning Objects With Small Openings ©
Objects like flasks and vessels with narrow necks can be difficult to clean. Try this: Use a funnel (if required) and fill the piece with hot water up to the neck and let stand with the top on for 15 minutes. (Remember, silver transfers heat quickly, so use a pot holder or oven mitt.) This will help soften and loosen the residue. Next, pour out the water and fill about 1/3 of the vessel with lemon juice and some yellow samp. This dried, crushed corn will help scrape away the residue. Close the top and shake vigorously for about 30 seconds. Empty the contents into a container then rinse with warm water. Inspect to see if there is any remaining residue. If there is, return the mixture and shake again. Do this until the interior is clean, then rinse twice with warm water and turn the object upside down to drain. (Make sure to wipe the outside of the piece so it doesn't leave water spots.) You can always contact me should you have questions.
Those crusty encrustation marks on and in your salt shaker, open salt, or other vessel can be a real annoyance. Encrustation is different from tarnish in the way it feels. Run your finger over the area and you'll feel a crusty mass. This cannot be removed with silver polish. One way to avoid this problem from the very start is to remove the salt after a dinner party and thoroughly wash it; this way the salt doesn't have time to do its damage. Heavily gold plating the interior is the only other way to preserve the finish because gold is impervious to the effects of salt. It is still wise to clean out a shaker at least twice a year and inspect the plate to make sure it has not been abraded by the salt. There is a simple way to remove the encrustation yourself. The method described can be used on any solid silver object that has this problem. Do this in a well-ventilated area and with nitrile gloves since you will be using household ammonia. If you have a few spots of encrustation, place a cotton swab or cotton ball with household ammonia on the spot. Let it sit for ten minutes, then rinse the entire piece thoroughly with warm water and inspect the surface. If the black or green spots remain, repeat the instructions above. * To remove the ammonia smell from the silver, neutralize the piece in white vinegar, then rinse under warm water. If the object is covered with encrustation – such as a salt shaker which you cannot remove the top – place it in a container for 10 minutes with enough ammonia to cover the piece. If the encrustation has not dissolved after a third application or soaking, have the object professionally conserved. If you are able to remove it successfully, you'll probably notice a slight graying of the silver. If this occurs, start by using the one of the least abrasive silver polishes to bring back the object's luster. When restoring the finish to a piece of silver, always invest more time using a gentle silver polish over getting quicker results with a more abrasive silver polish. Should you have questions, please contact me.
Removing Wax From Candle Holders ©
Do you become frustrated when trying to remove wax from your candle holders? Do you go pawing into your flatware drawer to find just the right size knife to dig out the wax which produces scratches and possible dents in the bottom of the cup? Do you run the piece under warm water, only to create a big mess? Well, here are some simple, non-invasive techniques. This method can be used for lacquered candle holders... Put the piece in your freezer. Upon removing, use your fingernail or wooden popsicle stick or skewer (not a knife) to delicately chip off the wax. If residue remains, remove it with grain alcohol or orange essential oil (wear nitrile gloves if you have a skin sensitivity) using a paper towel, cotton ball, or makeup pad. I like Better Life Natural Glass Cleaner (which has a neutral pH) to remove any signs of the oil. Do not use a hair dryer or heat gun as it may blister the lacquer! This method and the one above can be used for weighted and non-weighted candle holders without lacquer... Use your hair dryer (but not a heat gun) to gently warm the candle cup or other area coated with wax. Be careful not to get the object too hot, for if the candle holder is filled with pitch (a low-melting cement), it will melt. Lightly touch the area with your fingertip to make sure it's not too hot; then lightly wipe off the wax with a soft paper towel, cotton ball, or makeup pad. When cleaning out a candle cup on a candelabra, support the cup with your hand to prevent bending the arm. If the opening is too small for your finger, gently stuff the paper towel into the cup and twist. If there is a large build-up of wax, square off the end of a popsicle stick and remove the wax as it's warmed by the hair dryer. Cotton swabs also work very well, especially on Hanukkah lamps with very small candle cups. Use as much fresh paper towel or as many cotton swabs as needed; otherwise, you will continually reapply the wax you are removing. Use dripless candles whenever possible and remove any wax residue from candle holders after each use. Using these techniques will greatly reduce maintenance time. Note: Products like acetone, Goo Gone, Krud Cutter, Goof Off, and WD-40 will remove wax residue more quickly, but are less environmentally-friendly. Should you decide to use these products, make sure to wear nitrile gloves and perform the task in a well-ventilated area. Always feel free to contact me should you have questions. Do not use acetone or Goof Off on lacquered surfaces!
Removing Labels © If you just purchased a metal object with a label that won't peel off cleanly, buy some inexpensive 100% orange essential oil. If you have skin sensitivity, wear nitrile gloves for this procedure. Apply enough orange oil to cover the entire label; you can apply it directly to the label or use a cotton ball or makeup pad. Wait five minutes and the label should come off easily. If adhesive residue remains, wipe it away with additional oil, wipe the piece with a soft cloth, and then use glass cleaner to remove any remaining oil. (I like Better Life Glass Cleaner because it has a neutral pH.) If a discolored spot remains on the silver where the adhesive had been, remove it with a low-abrasive polish such as Blitz Silver Shine Polish or Herman's Simply Clean. Orange oil has additional uses around the house and shop. I put a few drops in the vacuum cleaner bag to give the house a nice citrusy scent. And I recently found that it removes sticky sap from my car without damaging the paint! If this product doesn't do the trick, try Goof Off, but be aware that it should only be used in a well-ventilated area while wearing heavy-weight nitrile gloves. It can also remove dried epoxy.
KEEP SILVER OUT OF THE DISHWASHER! It's that simple. There are four major reasons for keeping your prized sterling and silverplate out of the "chamber of doom:" (1) Any factory-applied patina (the blackening in recessed areas) will eventually be removed. (2) The detergents agressive chemicals combined with the washer's high cleaning temperature will eventually turn it grey or white, with a dull, non-reflective surface.

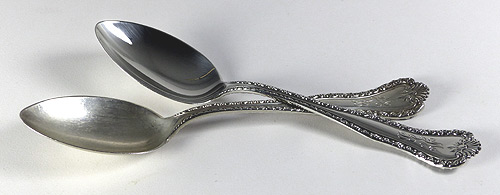

Above: Before and after polishing of dishwasher-dulled teaspoons. (3) Most older and some repaired hollow-handled knives are filled with pitch. This low-melting cement will expand with heat, possibly forcing open a thin solder seam, or exploding the knife blade out of the handle. (4) Silver that touches stainless in the dishwasher can create a chemical reaction, producing black spots or pitting on the stainless and possibly requiring the silver to be professionally refinished. Sterling, like a fine automobile, must be handled with tender loving care. You certainly wouldn't drive your Rolls Royce through a car wash, would you?
Do-it-Yourself Silverplating © You may have seen videos and ads from makers of do-it-yourself silverplating products. These solutions are wiped on or made for dipping base metal. Though they look tempting when thinking about replating a piece, stay away from them. After a few polishings the newly-applied fine silver will wear away. (The thickness of these deposits are measured in millionths as opposed to thousands for true electroplating.) And if you're a dealer attempting to hide the base metal, the buyer may be upset if that layer polishes off where surrounding areas of original plating doesn't. Though more expensive than purchasing these products, true electroplating deposits a far thicker, glossier, and more durable layer of fine silver that will last for generations when properly cared for.
Metal Toxicity on Plated Objects ©
There are three metals to be aware of when eating, drinking, or dispensing from a silverplated object. The easiest method for determining if plating has been removed is to hold a piece of glossy white paper next to the piece; you should see a color difference. Nickel Silver Most silverplated flatware has a nickel silver base metal for hardness quality. (Nickel silver actually contains no silver!) If you have a nickel alergy and see this metal, discontinue use and have it replated. Lead Plated vessels you drink from are sometimes made from an alloy called white metal. This material will contain lead with the addition of one or more of the following metals: antimony, tin, cadmium, bismuth, and zinc. The alloy, when exposed, is toxic and can leach into liquids, especially those that are acidic. If you see this gray metal inside a plated coffeepot, teapot, or other vessel, discontinue use and have the piece replated or repurpose it. If you're unsure, send me an image of the manufacturers stamp and the affected area. Copper There's a reason the interiors of copper cookware are coated with tin: it protects you from copper exposure. If you see this metal in a vessel you drink from, have the exposed metal resilvered. If your copper pans require retinning, contact East Coast Tinning. Regarding Pewter There are two types of pewter: leaded and lead-free. Old pewter is gray in appearance and contains lead and tin as a hardener. Lead-free pewter appears silver in color and is made-up of at least 90% tin, with the remainder antimony, copper, and sometimes bismuth. Leaded pewter must never be used with food or drink. If you're unsure if the object contains lead, send me an image of the piece. Solid silver alloys and intact silverplate have actual health benefits! Click this link to find out more.

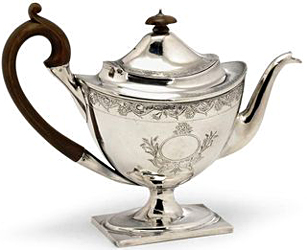

Your primary consideration should be to keep silver objects clean and free of dust and surface grime. In addition, the following guidelines will help to preserve your silver's finish while it is on display or in storage. Some storage materials should be avoided. Wrapping in newspaper or binding in rubber bands can cause deep discoloration that may have to be professionally removed. Never use plastic wrap as it will bond to silver over time, requiring solvents for removal. Finally, non-archival corrugated cardboard boxes may contain acids and sulfur that aggressively tarnish silver. If your flatware resides in a kitchen or dining room drawer, make sure it's covered with sulfur-absorbing flannel as the pollutants will be captured before hitting the silver. If a silver piece to be stored is already tarnished, even if it is heavily blackened, it need not be polished before storing: doing so will only reveal fresh sterling or fine silver electroplate to be exposed to the elements. The formation of tarnish diminishes over time as there is less fresh silver available for hydrogen sulfide to react with. Storage (Good): Tissue with polyethylene bag Before storing, wrap each piece in buffered tissue paper or Softwrap tissue; both are acid-free with a neutral pH. Place it in a polyethylene bag such as a Ziploc, toss in a 3M or Intercept Anti-Tarnish Strip (Intercept is preferred as it not only absorbs sulfur, it also neutralizes tarnish-producing gases), remove as much air as possible, then seal the bag. You can also use this method if using an untreated flannel bag or flatware roll. Storage (Better): Untreated flannel with polyethylene bag Put the object in an untreated flannel bag or flatware roll. Place it in a polyethylene bag such as a Ziploc, toss in a 3M or Intercept Anti-Tarnish Strip between the polyethylene and flannel, remove as much air as possible, then seal the bag. Intercept is preferred as it not only absorbs sulfur, it also neutralizes tarnish-producing gases. Both strips attract sulfur, thereby preventing much of it from being attached to the piece being stored. Storage (Best): Sulfur-absorbing flannel with polyethylene bag Why? Because treated flannel will guard against tarnish-producing gases from reaching the silver inside. Put the object in a sulfur-absorbing flannel bag or flatware roll made of Kenized SilverShield impregnated with microscopic particles of zinc, or Pacific Silvercloth impregnated with silver (preferred for its longevity). Pacific Silvercloth will stay effective for approximately 20 years outside of a polyethylene bag before it becomes saturated with sulfur. Place the flannel-cover silver bag it in a polyethylene bag such as a Ziploc, toss in an Intercept Anti-Tarnish Strip between the polyethylene and flannel, remove as much air as possible, then seal the bag. This will create an additional barrier against tarnish-producing gases and greatly extend the life of the flannel. Display Cases Certain paints, oils, and fabrics within the case can accelerate the formation of tarnish. Therefore, if the case or cabinet is made of wood, the interior surface should be sealed, preferably with lacquer or water-based polyurethane. If latex paint is used, allow it to dry for at least four months. See the dramatic difference when silver is not exposed to tarnish-causing particulate here. Install an Intercept Portable Filtration Unit or Foam Pad to absorb ta absorb and neutralize tarnish-producing gases.
Lacquers Lacquering silver and silverplate is generally not recommended for a number of reasons: 1. The individual may not properly prepare the object's surface to accept the lacquer. 2. It's very difficult to obtain a uniform coating, even when applied by a professional. 3. If the coating is not applied well, it may have streaks and small holes, allowing tarnish to form. 4. Lacquer will eventually yellow and crack, allowing tarnish to form within the fissures and eventually under the protective coating. Strong solvents must then be used to remove the lacquer and the piece refinished. Take a look at these pieces that were once lacquered by the traditional spray method. In the case of lacquering silver for museum display, Agateen lacquer #27 was found to be the most successful coating as tested by the Winterthur Museum conservation department. It is an incredibly time-consuming, toxic process and must be done in a controlled environment. Renaissance Wax for Metal
Because of the above issues, Renaissance wax – an archival micro-crystalline product – is a better choice. Renaissance will not yellow or crack and will last for years if handled properly. When applying Renaissance, do so in small areas at a time (no larger than a 3" square) and in a well-venitlated area. Buff with a soft cotton cloth, cotton ball, or makeup pad immediately. Overlap each area to insure the entire surface gets coated. Renaissance is not as durable as lacquer, so the object should be handled with heavyweight cotton inspection gloves as acid from fingers may eventually remove it. Since dust can be acidic and eventually wear through the wax, placing your silver in a closed display will help insure that particulate will not fall on the object's surface. If the object resides outside a display case, every few months lightly spray it with distilled water then gently wipe with a Selvyt cloth or soft cotton cloth. This will keep the wax or silver polish with tarnish protectant from breaking down prematurely. Renaissance should not be used on flatware or other surfaces that will be used to eat or drink from. It can of course be used on the exteriors of coffeepots, creamers, and the like.
Another tested and proven long-term tarnish protectant is non-toxic Meguiar's Quik Wax. This auto wax is sprayed on, then buffed with a cotton cloth. Though non-toxic, Meguiar's should not be used on flatware or other surfaces that will be used to eat or drink from. It can of course be used on the exteriors of sterling and plated coffeepots, creamers, and the like. Like Renaissance Wax, it's also effective on brass, bronze, copper, wrought iron, and steel. Meguiar's can be removed with hand sanitizer (remove any resudue with Better Life Natural Glass Cleaner). At the first signs of tarnish, try removing it with Isopropyl alcohol then recoat with the wax. If the object resides outside a display case, every few months lightly spray it with distilled water then gently wipe with a Selvyt cloth or soft cotton cloth. This will keep the wax or silver polish with tarnish protectant from breaking down prematurely. I prefer Meguiar's over Renaissance because it's 1. non-toxic, 2. easier to apply and buff, 3. less expensive. Meguiar's can be found in most auto supply stores. Staples Crystal Clear Wax for Porous Attachments
It's critical to retard rot and drying out of porous attachments such as ivory insulators, wooden handles, wooden bases on wine bottle coasters, etc. In a well-ventilated area apply a very tin coating of clear carnauba wax (I like Staples Crystal Clear Wax) with a cotton towel or soft sable-type brush. After no more then one minute, use a paper or cotton towel to buff the surface until hard to the touch. Repeat after at least three hours of drying with a second then third coat. The wax should be fully cured within 24 hours; by that time the solvent will have evaporated and the smell dissipated. I also use Staples to protect my steel tools from rusting.
Atmosphere Anti-Tarnish Products ©
1.11.2021:

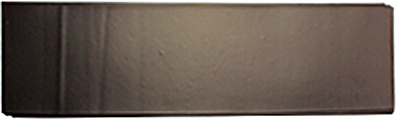

3M Anti-Tarnish Strips have been discontinued. 3M Anti-Tarnish Strips can be used to absorb tarnish-producing gases. The strips are made from a 45-lb. paper containing activated charcoal. They guard against corrosion, tarnish, and discoloration by absorbing airborne pollutants. These strips can also be used to protect objects containing copper, brass, solder, gold, and tin. 3M strips absorb on both sides. Intercept Anti-Tarnish Strips consist of a polymer matrix with copper bound in its structure. The effective surface area of copper available for reactions is twice the size of the polymer strip. The chemical reactions that take place with Intercept and corrosive gases permanently convert them into non-reactive compounds in the polymer and purify the enclosed environment. Intercept creates a neutralized atmosphere which protects all materials enclosed with it against corrosion and aging. Moisture that migrates through the packaging material will also be cleaned of corrosive elements. Intercept reacts with corrosive gases in less than an hour. The strips, which protect on both sides, should be placed near the objects to be protected. Each 3M and Intercept 2"x7" strip will protect an area up to 424 cubic inches (.25 cubic feet), the approximate size of a flatware chest. Protection time depends on the nature and permeability of the storage container and on the pollution level of the surrounding atmosphere. The following guidelines apply to an average atmosphere: loosely sealed container (e.g., cardboard box, china cabinet, or flatware chest): 6 months; moderately sealed container (e.g., lightweight polyethylene bag): 12 months; and tightly sealed container (e.g., low-permeability polyethylene bag): up to 24 months. The strips should be replaced in a timely fashion because once they are fully saturated with pollutants, the strips will become inactive. Though both of these products work well, I recommend the Intercept product because 1. They absorb, neutralize, and prevent the gases from reacting with the silver. 2. It won't eventually out-gas like the 3M strips, 3. They're not as abrasive as the 3M Strips if your silver should rub against it. 4. The strips eventually turn balck indicating they need to be replaced. Intercept claims their strips are non-abrasive, but any plastic that is rubbed against silver will leave very fine lines which will be most evident on highly polished objects. Additional information about Intercept strpis can be found here. Intercept Foam Pads
If you're looking to fend off tarnish in larger areas than what the above strips provide, try this product. Because of its woven properties which increase its surface area, each pad will protect silver and other metals in an enclosed cabinet up to 51840 cubic inches (30 cubic feet). The color will turn from copper to dark gray when it's time to replace (approximately 12 months).
Here's a new addition to your silver care arsenal. It's Intercept's Portable Filtration Unit, a small battery-operated device that uses a non-woven copper filter that absorbs and neutralizes atmospheric pollution (including ozone, nitrous groups, sulfur compounds, chlorine compounds, gaseous acetic acid, and more) in silver cabinets. The passive cleaning and active air filtration within those cabinets will leave a pristine environment and your silver free of tarnish. If your silver resides in a humid environment, you may also want to use silica gel to absorb any moisture. The filter does not outgas, meaning nothing will coat the items being protected. Cabinets need not be 100% sealed for the unit to do its job. It will filter one full air exchange per hour per cubic meter of display continuously for 60-90 days depending on how polluted the interior environment is. When the fully saturated copper filter turns dark gray it must be changed. The two D batteries (not included) must be changed once every 60 days (mark your calendar). You may want to look into purchasing rechargeable batteries (the environmentally-responsible alternative). Additional information can be found here. Additional Intercept products can be found here. Warning! Though camphor has been used as a tarnish absorber for many years, it is considered a poisonous substance.*
* References:
Silica Gel (Humidity Control) ©
Since World War II, silica gel has been the drying agent of choice by government and industry. It is safe to use with even the most sensitive materials, including food and medicine—it’s what is contained in those tiny packets enclosed in pill bottles and shoe boxes to prevent moisture. It prevents tarnish- and corrosion-causing condensation within enclosed areas, such as flatware drawers and china cabinets. Such areas should be made as vapor-proof as possible. Despite its name, silica gel is not a gel, but is in the form of chemically inert man-made granules containing thousands of tiny crevices that “drink up” excess humidity from the air by surface adsorption. A good choice of product is a canister containing silica gel that turns from blue to pink when saturated with moisture. Reactivate the gel by drying the canister in a conventional oven. The reactivation process can be repeated indefinitely for a lifetime of protection.
Protecting Carbon Steel Components From Rusting ©
Do you own flatware containing carbon steel components (blades and fork tines)? This is how you can keep those components from rusting: After dinner, hand wash the knives in warm water, then dry immediately. Apply a very thin layer of Burt's Bees Lip Balm and wipe with a paper towel until there is no residue left behind. This will keep the blades from rusting. Since this product is non-toxic, you won't have to wash them prior to use.
• • • Credits A large part of the information in the sections on Chemical Dips and Silver Display & Storage was obtained from articles supplied by the Canadian Conservation Institute, Department of Canadian Heritage, 1030 Innes Rd., Ottawa, Ontario, Canada K1A OM5, 613/998-3721; Fax: 613/998-4721. Jeffrey Herman supplied additional information on these topics. Referenced Articles "Silver-Care and Tarnish Removal," CCI Notes No. 9/7 (Ottawa: Canadian Conservation Institute, 1993). This article is not technical and is intended for the general public. "Historical Silver: Storage, Display and Tarnish Removal" by Lyndsie S. Selwyn, Journal of the International Institute for Conservation—Canadian Group, volume 15, 1990, pp. 12-22. "Evaluation of Silver—Cleaning Products" by Lyndsie S. Selwyn and Charles G. Costain, Journal of the International Institute for Conservation—Canadian Group, volume 16, 1991, pp. 3-16.
Resources
for Silver Care Products (
• Silver
Polishes
* Blitz Silver Shine Polish is a great all-around silver polish because it's among the mildest, it contains a tarnish protectant, and is more versatile than other polishes in its class. It also leaves silver glossy. The Herman's Simply Clean is another polish in the Least Abrasive category. The difference in these polishes is that the Herman's removes tarnish without making silver look too bright and leaves no residue, meaning there's no tarnish protectant left on the surface. This is a concern for some people who don't want anything remaining on their silver. I personally prefer using Herman's on pieces that come in contact with food (flatware) or liquids (baby cups, mugs, flagons, and the like). You can certainly use Herman's on the interior of a teapot, for example, and the Blitz on the exterior to retard tarnish. Keep in mind that both products are non-toxic and earth-friendly.
3M Tarni-Shield™ Silver Polish
Twinkle® Silver Polish
Wright's® Silver Cream
• Silver
Cleaners
(removes grime and light tarnish)
• Nitrile
Gloves (heavyweight and disposable)
• Heavyweight
Cotton Inspection Gloves
•
Brushes
Natural Boar
Bristle (stiff)
Horsehair (stiffest)
• Selvyt™
Cloths
• Intercept
Anti-Tarnish Strips & Foam Pads
• Silica
Gel
• Buffered
(Acid-Free) Tissue Paper
• Softwrap,
Acid-Free Tissue
(for large silver collections)
• Protective
Wax
Renaissance Wax
• Intercept
Filtration Unit
•
Custom Flatware and Holloware Chests
• Custom
Drawer Inserts,
Relining, Flatware Displays
SilverGuard / website
Sterling Buffet / website
• Flannel
Holloware & Flatware Bags, and Yardage
• Jewelry
& Silverware Safes
•
Retinning
• Lacquer
Stripper (thick consistancy &
safer to use) |
|

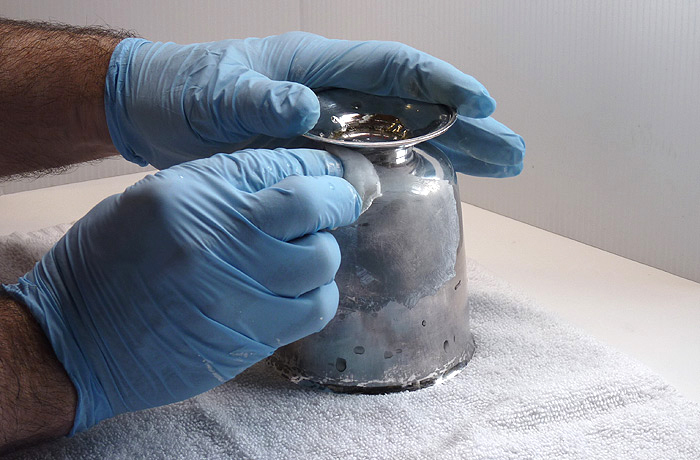

The video below is an example of how I polished a Paul Revere beaker using Earth Friendly Silver Polish, cotton balls, and the occasional cotton swab. (Earth Friendly was discontinued which is why I developed Herman's Simply Clean Collectors Silver Polish.) The white translucent panel in front provided contrast, making tarnish easier to identify and completely remove. The total polishing time was 30 minutes because of the long-neglected surface. Removing tarnish that would have formed on these pieces over a period of six months may have only taken only two minutes. |
|
This next video demonstrates basic silver polishing. You'll learn a lot within six minutes. |
Scroll to Top Button? Go to our FAQ page for more info.
= Preferred)
