Herman Silver Restoration & Conservation: Silver Glossary

Alpacca Silver: Sometimes called Nickel Silver or German Silver, the usual formulation is 60% copper, 20% nickel and 20% zinc. This technique of metal working was practiced by the Chinese for two millennia, and called “Paktong.” In an attempt to imitate the Chinese alloy, “Neusilber” or New Silver was developed by a German scientist in the early 19th century, and later marketed under the trade name “Alpacca” Silver.

Alpaca Silver polishes to a bright silver finish and makes stunning jewelry. Many Fair Trade artisans in Central and South America work with Alpaca Silver material, as it is more durable and easier to work with than silver. It is also less precious than silver, making it a more affordable material for both the artisans and collectors.

Annealing: The heat treating (softening) of metal after it has been work-hardened with steel tools, and is necessary between raising and forging stages. Annealing is also used to remove tension in a piece of metal before brazing, helping to reduce warpage.

Argentium Sterling: A new firestain-free alloy with fantastic tarnish resistance. It contains a higher percentage of fine silver (93%, and the higher 97% fine silver). It can be stamped sterling. More on Argentium can be found here.

Argyle: In the 18th Century, the argyle (also spelled ‘argyle’) was famously named after, and crafted in honour of, the fifth Duke of Argyll, John Campbell and his wife, Elizabeth Gunning, Baroness Hamilton of Hameldon. Throughout winter, the Duke lamented the fact that his gravy was served freezing cold due to the extended distance between the kitchen and the dining table. So, in order to prevent this, the argyle was created.

The earliest prototypes had an internal compartment that could be heated up with an iron rod which kept the contents warm.

Gradually, different shapes, styles, and sizes of argyles were crafted. There were a few different adaptations, and; with each alteration, the heating system improved. Gradually, the argyle changed from the aforementioned rod technique to an internal double-walled chamber that could be filled with hot water.

Argyles are made in a variety of shapes and sizes, but typically most have a rounded, curved body, and a small foot to the bottom. Typically, the spout is placed close to the bottom of the argyle; this allowed the gravy served to be drawn from underneath the layer of fat that settled on top.

Perhaps it’s because of the shape, but many people bought argyles with the assumption that they were tea or coffee pots and attempted to use them for that purpose. One person described the argyle as a ‘curious little water warmed coffee pot’ (Clark, 1926).

However, later they began to be sold as individual coffee pots. The argyle’s dual usage makes it quite a practical piece of silverware.

Assay: It is impractical for a refiner to refine each individual shipment of scrap separately. To keep the operation efficient, a sample is taken of each refining shipment to determine its precious metal content. Drilling samples are taken from each end of the bullion. The assay laboratory does a miniature refining process on the two samples to determine the precious content. The bullion karat is actually determined by the percentage of fine gold left following the assaying process. For example, 2-100 milligram samples are taken. The samples are wrapped in lead, placed onto cupels and put into a special assay furnace. As the samples become molten, the base metals, including the lead, vaporize or absorb into the cupels, leaving only the precious metal on top. The precious metal buttons are dissolved in the acid so that the gold content can be determined. The remaining samples are reweighed. If the 100 milligram samples now weigh only 50 milligrams, this means that there is 50% fine gold in the bullion.

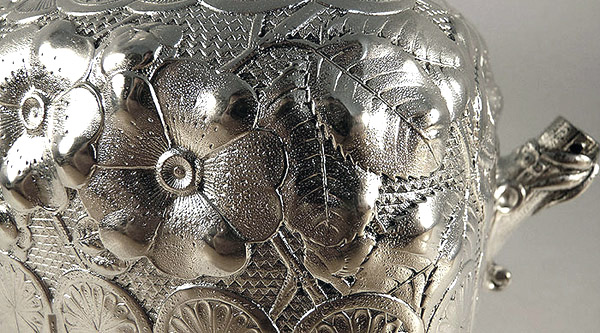

Blistering: This occurs when a base metal or precious metal object that is plated with fine silver is overheated, detaching itself from the underlying metal resulting in a surface like the below (notice the fine blistered texture covering the chasing).

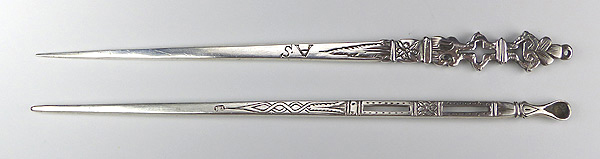

Bodkin: These skewers were used in the 17th century to thread bands of yarn and ribbon through all types of clothing including corsets. The yarn was threaded through the rectangular slits. They could also make holes in leather as well as being utilized as a needle. They were usually hung on a belt using the small eye. Bodkins were personal, often carried on the person, and passed through the generations. The small hollow at the non-tapered end of the lower bodkin was used to scoop wax from the ear; this was used to coat and strengthen the fibers of the thread making it easier to insert through the eyelet. The bodkins pictured below are 5.75" long.

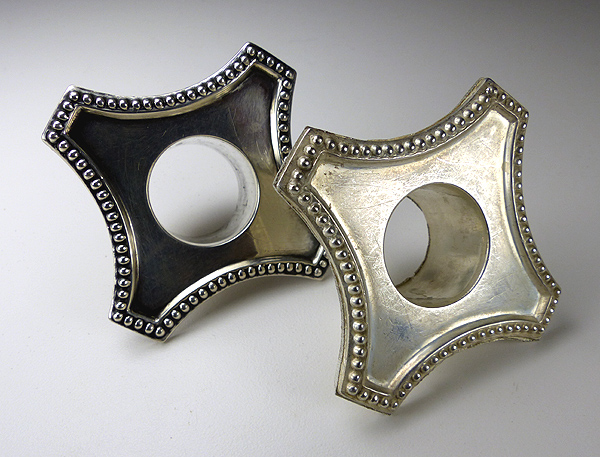

Bobeche: An accessory that goes around a candle to capture wax from ruynning down the candle holder, candlestick, or candelabra. Silver bobeches generally sit inside a candle cup. Hear the pronunciation here.

Brass: An alloy consisting primarily of copper, usually with zic as the additional metal.

Brazing: A joining process whereby a filler metal or alloy is heated to melting temperature above 800 °F and distributed between two or more close-fitting parts by capillary action. At its liquid temperature, the molten filler metal and flux interacts with a thin layer of the base metal, cooling to form a strong, sealed joint. By definition the melting temperature of the braze alloy is lower (sometimes substantially) than the melting temperature of the materials being joined. The brazed joint becomes a sandwich of different layers, each metallurgically linked to the adjacent layers.

When brazing sterling, care must be used to prevent firescale or firestain which is formed at higher temperatures than soldering.

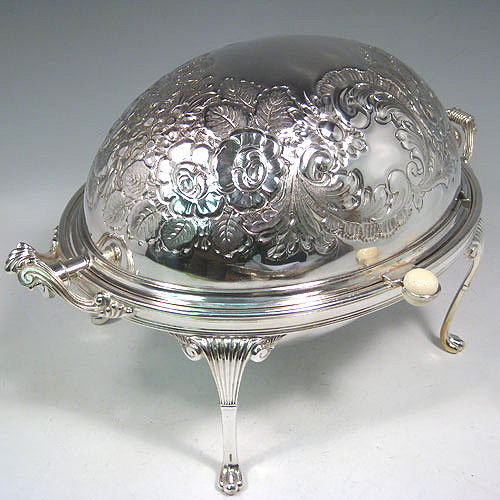

Breakfast Dish: Below is a roll-top breakfast dish. The interior has a pierced plate that the food is placed on, with hot water beneith to keep the food warm. Normally placed on a side board.

Bright-cutting: A form of engraving which uses polished gravers to produce very reflective cuts.

Britannia Silver: An alloy of silver containing 95.84% silver, with the balance usually copper. This standard was introduced in England by Act of Parliament in 1697 to replace sterling silver as the obligatory standard for items of "wrought plate." The lion passant gardant hallmark denoting sterling was replaced with "the figure of a woman commonly called Britannia," and the leopard's head mark of the Worshipful Company of Goldsmiths replaced with a "lion's head erased."

Britannia standard silver was introduced by the English government as part of the great recoinage scheme of William III from 1696, when attempts were made to limit the clipping and melting of sterling silver coinage. It was thought that by maintaining a higher standard for plate, there would be less incentive to put the newly issued sterling coins in the melting pot.

Sterling silver was approved again for use by silversmiths from 1 June 1720, and thereafter Britannia silver has remained an optional standard for silver assay in the United Kingdom and Ireland. Since the hallmarking changes of 1 January 1999, Britannia silver has been denoted by the millesimal fineness hallmark 958, with the symbol of Britannia being applied optionally.

The silver bullion coins of the Royal Mint issued since 1998, known as "Britannias" for their reverse image, are minted in Britannia standard silver.

Britannia silver should be distinguished from Britannia metal, a pewter-like alloy containing no silver.

Bronze: An alloy consisting primarily of copper, usually with tin as the additional metal.

Casting: A manufacturing process by which a liquid material is (usually) poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify. The solid casting is then ejected or broken out to complete the process. Casting is most often used for making complex shapes that would be otherwise difficult or uneconomical to make by other methods.

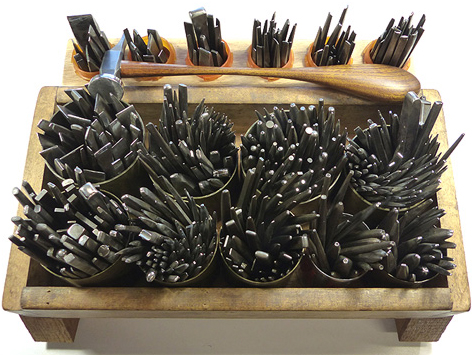

Chasing:The technique of detailing the front surface of a metal article by indenting with various hammer-struck punches. This process does not remove metal, but reshapes it. Chasing is demonstrated here. This technique is demonstrated in the second part of the video. See an example of a chased Tiffany teapot here.

Checking: The hammering down onto the edge of a form. This technique strengthens and visually thickens the edge. See this piece.

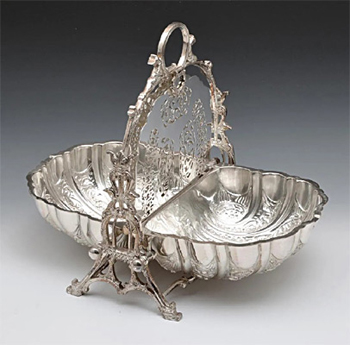

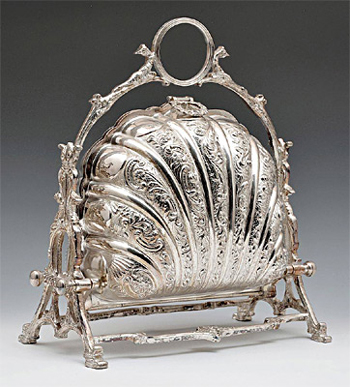

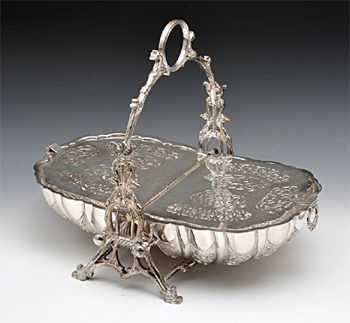

Clam Shell Biscuit/Bun Warmer: A table accrssory popular during the 18th and early 20 centuries for keeping buns, biscuits, and other baked goods warm.

Coin Silver: Coin silver in America was a variable alloy; the purity of metal matching, in theory, that of contemporary currency. Occasionally, during periods of shortage, coins were literally used as metal stock, especially in the colonial era. Because of the multiplicity of coinage in use from foreign countries (such as the Spanish reale), it has varied from 83.5% to 92.5% silver with the remaining percentage copper. This also holds true of those objects that were melted down and refashioned. It was never an enforceable standard like sterling, but was a means for silversmiths, lacking a national standard of assay, to assure clients of the quality of their silver. By the 1820s, with flat-rolled silver stock readily available, it became an arbitrary benchmark set at 90% pure silver, and remained so until the British sterling standard was adopted by Gorham in 1868 to compete with British-made silver. Other manufacturers followed suit. Any object stamped with the word "sterling" or .925 is a legally enforceable standard. Though sterling must contain at least 92.5% fine silver, any other metal can be used for the remaining 7.5%.

Colloidal Silver: A liquid suspension of microscopic particles of silver. A colloid is technically defined as particles which remain suspended without forming an ionic, or dissolved solution. The broader commercial definition of "colloidal silver" includes products that contain various concentrations of ionic silver, silver colloids, ionic silver compounds or silver proteins in purified water. Colloidal silver with concentrations of 30 parts per million (ppm) or less are typically manufactured using an electrolysis process, whereas colloidal silver with higher concentrations of 50 ppm or more are usually either silver compounds such as silver chloride and silver iodide or are solutions that have been bound with a protein to disperse the particles.

Currently, colloidal silver is marketed as an alternative medical remedy, though there is no scientific evidence of its effectiveness for any medical condition. Excessive use can result in argyria, a form of silver toxicity.

Prior to 1938, colloidal silver was widely promoted as a "cure-all," and silver products were prescribed by physicians as topical antibiotics. However, with the development of more effective, less expensive antibiotics such as penicillin and sulfanilamide, medical use of colloidal silver ceased. From approximately 1990, there has been a resurgence of the promotion of colloidal silver as an alternative medicine treatment, marketed with claims that it can prevent or treat numerous diseases.

Colloidal silver products are legally available at health food stores in the United States and Australia and are marketed over the Internet as a dietary supplement. It is illegal in the U.S. and Australia for marketers to make claims of medical effectiveness for colloidal silver, but some websites still list its use for the prevention of colds and flu, and the treatment of more serious conditions such as diabetes, cancer, chronic fatigue syndrome, HIV/AIDS, and tuberculosis, among other diseases. Colloidal silver has been found to lack any antimicrobial effect, and there is no medical evidence that colloidal silver is effective for any of these claimed indications. Silver is not an essential mineral in humans; there is no dietary requirement for silver, and no such thing as a silver "deficiency."

Currently, there are no evidence-based medical uses for colloidal silver. There are no clinical studies in humans demonstrating effectiveness, and several reports of toxicity. The U.S. National Center for Complementary and Alternative Medicine has issued an advisory indicating that the marketing claims made about colloidal silver are scientifically unsupported, and that the silver content of marketed supplements varies widely and can pose risks to the consumer.

Excessive intake of silver products may result in a condition known as argyria, one symptom of which is blue or gray discoloration of the skin. The discoloration occurs when silver is deposited in the skin and then darkened by sunlight, just as silver particles in photographic film darken when exposed to sunlight. Localized argyria can occur as a result of topical use of silver-containing remedies, while generalized argyria results from the ingestion of colloidal silver. Arygria is usually permanent, and there is no known effective treatment. While argyria is usually benign and limited to skin discoloration, there are isolated reports of more serious neurologic, renal, or hepatic complications. A death has been reported in the medical literature as a result of colloidal silver use; in that case, a 71-year-old man developed status epilepticus which the authors felt was due to silver toxicity.

A number of case reports describe argyria after ingestion of colloidal silver marketed as an alternative-medicine treatment. Colloidal silver may theoretically interact with some medications, including tetracycline and quinolone antibiotics and penicillamine, reducing the effectiveness of those medications.

In August 1999, the U.S. Food and Drug Administration (FDA) banned colloidal silver sellers from claiming any therapeutic value for the product, noting that such products were being marketed for numerous diseases without evidence of effectiveness. The FDA also banned over-the-counter sale of drug products containing colloidal silver due to the lack of safety or efficacy data. The product now has the status of a dietary supplement in the US; it can be promoted with general "structure-function" claims, but cannot be marketed as preventing or treating any illness.

Following this ruling, the FDA has issued numerous warnings to Internet sites which have continued to promote colloidal silver as an antibiotic or for other medical purposes.

In 2002, the Australian Therapeutic Goods Administration (TGA) ruled that colloidal silver-containing products were no longer exempt from therapeutic goods legislation and had to meet the requirements of other products covered by this law. The TGA found that "there are no current legitimate uses of colloidal silver and that the Surveillance Section of the TGA be requested to investigate the illegal availability of colloidal silver products because of concerns about their significant toxicity. The reasons for the recommendation were that:

There is little evidence to support therapeutic claims made for colloidal silver products; the risk to consumers of silver toxicity outweighs the value of trying an unsubstantiated treatment, and bacterial resistance to silver can occur; and efforts should be made to curb the illegal availability of colloidal silver products, which is a significant public health issue.

Coin Silver: Coin (or Pure Coin, Dollar, Sandard) silver may have a variety of marks or may not be marked at all. Coin silver originally was made from melting coins from various countries. These coins were minted using varying grades of silver. The U.S. adopted a 900/1000 standard for American silver coinage in 1837, but as silversmiths continued to use predominantly foreign coins to make their silver goods, the actual silver content of coin silver objects can vary.

The word Standard used on silver indicates it was made to the U.S. silver standard after 1837, so 90% pure. Please note that the word Standard can also be used on silverplate to indicate something altogether different.

Due to the Assay Act of 1814 passed in the State of Maryland, a mark of the Baltimore Coat-of-Arms or the numbers 10-15, 10 oz 15, 1015, 11, 11 oz, or 11-12 also are an indication of coin silver.

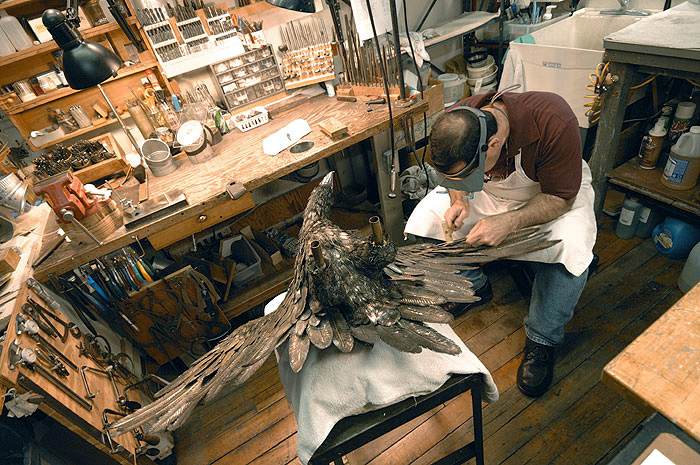

Conservation: Primarily dealing with cleaning an object, doing the least amount of harm to its original finish.

Crimping: A rapid raising process by forming radiating valleys from the center to the outer edge of a metal object then raised. Generally used on thinner gauge metal.

Cross-Peen Hammer: Hammers with long, narrow faces running perpendicular to the handle and used for raising, forming, and planishing.

Depletion Gilding: Term used for producing a pure gold surface on an object by dissolving the copper in the alloy with acid. A more accurate term for gold alloys is, for example: "18K gold, surface copper depleted." For sterling and other silver alloys: "sterling, surface copper depleted."

Die Forming: The process of stamping or hammering a sheet of metal into a form which has the outline of the object. Also used when making duplicate objects.

Drawbench: A narrow, waist-high bench equipped with a chain dragging a pair of drawtongs (large coarse-toothed pliers) used to grip the end of a piece of wire. This wire is then pulled through a series of consecutively smaller dies (round, square, triangular, etc.) reducing its thickness. Patterned dies may also be used to produce moldings, boarders, etc. See a drawbench here.

Duty Mark: (also called Sovereign's Mark): An additional mark that was stamped certifying a variable tax was levied on all silver and gold assayed in Great Britain from December 2,1784 to April 30, 1890.

Electroforming / Electrotyping: The process of growing a metalic object over a mandrel or into a mold. See an example here.

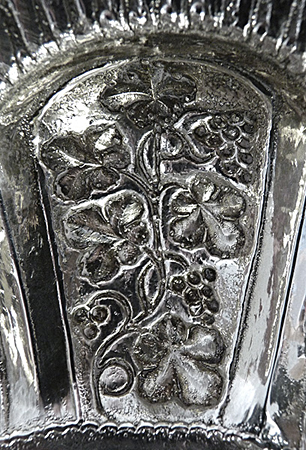

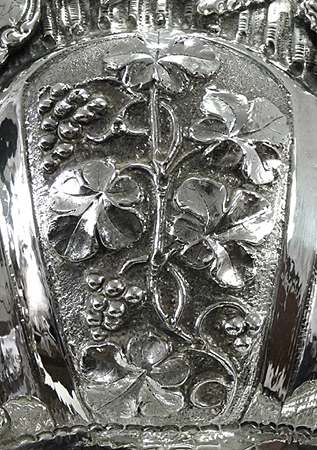

The image on the left is an exterior panel of a fine silver bowl made in Greece. The right image is the reverse of that panel showing the tiny nodules that grew from inside the mold. This is one method in determining if an object was hand made or a copy of an older piece. This process is also used to make duplicate objects from new designs.

Electroplating: Italian Luigi V. Brugnatelli invented electroplating by electrolysis in 1805. But, it wasn't until the 1840s that John Wright of Birmingham, England, discovered a more commercial process of electroplating using potassium cyanide. George Richards Elkington and Henry Elkington of Birmingham England – two cousins who began their research during the industrial revolution – bought the patent rights from Wright and were given the first patent for electroplating in the 1840s.The process of putting a metallic coating on a metal or other conducting surface by using an electric current. It is used to improve the appearance of materials, for protection against corrosion, and to make plates for printing.

The process: The article to be plated is thoroughly cleaned of grease and dirt by dipping it in acid and alkaline cleaning solutions. It is then put in a solution of the metal with which it is to be coated. The metal exists in the form of positive ions (atoms that have lost one or more electrons). The article is connected to the cathode (negative end of a source of electricity). The anode (positive electric terminal) is connected to another conductor which is also dipped into the solution. The electric current acts on the metallic ions in the solution. The ions are attracted to the cathode, and the coating is deposited on the article's metal surface. If the metal in the solution and the metal of the positive terminal are the same, the electricity may remove metal from the terminal to replace metal taken from the solution.

The thickness of the layer deposited on the article depends on the strength of the electric current, the concentration of metallic ions, and the length of time the article has been in the solution. The terms triple-plated and quadruple-plated indicate various thicknesses of plating, not separate layers deposited on the surface.

Ornamental and protective platings are very thin, usually from 1/1,000 to 2/1,000 of an inch (0.03 to 0.05 millimeter) thick. For plating gold, silver, copper, zinc, and cadmium, cyanide solutions of the same metals are often used. Copper and zinc may also be plated by acid-sulfate solutions. Chromium is plated with a chromic-acid solution and nickel is plated with nickel sulfate. Other metals plated for commercial use include platinum, lead, and tin. Alloys of two or more metals may be deposited by using a solution of salts of the metals that make up the alloy. Examples of alloys used for plating are brass, black nickel, lead-tin, and bronze.

Electroplating is also used to reproduce medals or other objects in a process called electroforming. This process was formerly known as galvanoplasty. One kind of electroforming, called electrotyping, is the reproduction of type forms and engravings for the printing industry.

Resource: Melvin Bernstein, "Electroplating," Discovery Channel School, original content provided by World Book Online, http://www.discoveryschool.com/homeworkhelp/worldbook/atozscience/e/177500.html, 11/15/2001

Electrum: A naturally occurring alloy of gold and silver, with possible trace amounts of copper and other metals.

Enamel: As there are numerous types of enameling techniques, I'ts best to direct you to Antique Jewelry University's enamel page.

Engine Turning: An engraving technique in which a very precise intricate repetitive patterns or design is mechanically engraved into an underlying material with very fine detail. It is engraving on a two- or three-dimensional surface with a diamond stylus cutting very specific designs, mostly linear. You've probably seen examples engine turning on card cases, money clips, and dresserware. Engine turning is also called guilloché after the French engineer “Guillot,” who invented a machine “that could scratch fine patterns and designs on metallic surfaces.” Engine turning machines were first used in the 1500-1600's on soft materials like ivory and wood and in the 1700's it was adopted for metal such as gold and silver. The last machines were manufactured around 1948-1949. The machine improved upon the more time-consuming practice of making similar designs by hand, allowing for greater delicacy, precision, and closeness of the line, as well as greater speed. Find more information on engine turning and to see videos, go here.

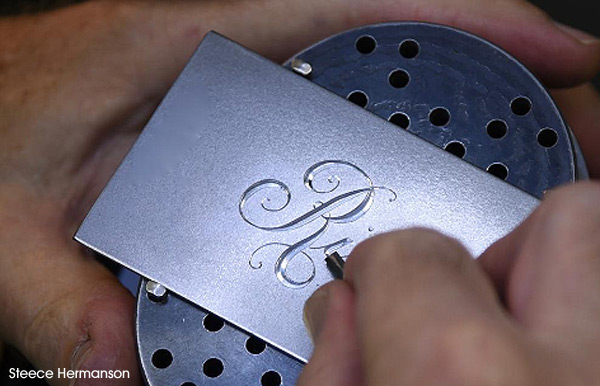

Engraving: The process of cutting shallow lines into metal with a sharp graver, reproducing artwork which has been drawn on a metal article. Unlike machine engraving, hand engraving removes metal when cutting. See a video here. A fantastic engraving glossary can be found here.

Etching: A process of dissolving metal with acid, leaving a recessed design. The upper, unetched surface is sometimes engraved.

European Rulers: An abridged list from the Metropolitan Museum of Art includes kings and queens whose rule affected the arts of Europe in important ways and whose names are most commonly raised in art historical discussion. See the list here.

European Silver Quality Markings
Reprinted with permission of Beer Stein and Gary Kirsner Auctions
Note: The below article was originally written for beer stein collectors. I have removed that reference as the same alloys were also used on other silver objects.

Numbers can frequently be found on silver made in the various European countries. While a few general rules exist, it is not always immediately clear exactly what percentage of silver is present in a silver object. We can find silver with numerical markings such as 12, 14, .800, .900, .925, 925S, .830H, 84 and 88.

Austria-Hungary, having an historically German culture, used the Lothige system. The marks that can be found on silver from these areas are 15, 14, 13 and 12, which equate to .9375, .875, .8125, and .750.

Denmark’s silver standard was based on 1000 parts. There marks are followed by an S, such as 925S and 830S. The 830S mark is the most often seen mark on silver from Denmark. Finland added an H to the numerical mark, such as .925H, .830H and .813H. Belgium had a similar system with an A following the numbers, but they changed to a simple .900 or .800.

Silvermakers in England have used a sterling standard since 1544 when they marked their wares with a lion passant. There are four or five required marks found on silver items made in England. One of these marks is used to indicate the sterling standard. There were a few brief periods in which the standard in England was actually higher than 925/1000. The other countries in Europe that made silver all had their own silver standards. The silver standard is usually indicated on these objects.

France used a simple numbering system of .950 or .800. However, these numbers were represented by stamped marks that are variations of human heads. This is a somewhat confusing system as it usually requires reference to a book on silver marks.

Silver from the 1600s to the early 1800s used a measurement system called Lothige. Markings were numbers such as 12 or 14. These numbers were divided by 16. Thus 12 Loth is 12/16 or .750 silver content and 14 Loth is 14/16 or .875 silver content. This marking system went out of fashion by the 1880s. Silver items made in Germany after 1888 are marked .800 (this is 80% silver content), and this is the standard for silver pieces made in Germany from that time on. A small crescent moon and a small Imperial crown always accompany the .800 mark on German silver items made after 1888. Note that the Imperial crown does not indicate that the maker had something to do with the Imperial court.

Do not assume that 12 necessarily means Loth. Manufacturers of silverplate in Germany have been known to use a simple 12 stamp into the metal with no reference to Loth at all. Several lids have been seen carrying that numerical mark over the years. Plating was invented in 1840 and prolific in Europe by 1860. Since there was little if any control by the silver regulators, markings on silver-plated items can create confusion.

Starting in 1872, Italy used a similar marking system with female heads indicating .950, .900 and .800 fineness. More modern items produced in Italy used a flag with a number 1 (for .925) and a flag with a number 2 (for .800).

The silvermakers in the Netherlands used the old city marks in the 17th and 18th centuries, which guaranteed .875 fineness. Starting in 1814 they changed to a mark of a standing lion with a 1 (equivalent to .934) or standing lion with a 2 (equivalent to .833).

In 1891 Norway started using the 1000 part system with an S either before or after the number, such as S830 or 830S. In Norway .830 is the lowest allowed purity.

Silver made in Russia was marked with numbers such as 84. The base or 100% pure number was 96, which was called a Zolotnik. An item marked 84 would be 84/96 or .875 pure silver. Other numerical marks that can be found on Russian silver include 88 (.9166 pure) and 91 (.9479). Russian silver was usually profusely marked. It is normal to find numerous marks on each part of a Russian silver beer stein, including the body, the lid and the handle.

The marking system in Sweden was based on the Lod, which was similar to the Loth system with 16 being equivalent to 1000. The marking system in Sweden later changed to the 1000 parts system. Norway used a marking system similar to Sweden for older silver items.

Switzerland used the Lothige system until 1880 when they set standards of fineness at .935, .925, .900, .875 and .800. All silver items made in Switzerland after 1882 also have a bear or a grouse as part of the mark.

Finishing: Processes, accomplished either by hand or mechanical device with suitable compounds, to produce a desired surface.

Firescale: A scale that develops on the surface of non-ferrous objects which had no protective flux during brazing. This cupric oxide layer must then be removed chemically or by abrasive methods.

Firestain: Oxidized copper (shown as the dark, blotchy areas on the tankards below) in solid silver can be found on many pre-colonial through early twentieth century pieces. If after cleaning your silver (not silverplate) piece a purplish stain remains, do not mistake this stain (cuprous oxide) for tarnish! Attempting to remove it will only damage your prized piece. It is not generally seen on pieces that have been produced by the large American silver companies after the early 1900s, but many one-person silversmithing shops still use this technique. I will not get into the technicalities of firestain here, except to say that the stain is usually obscured with fine silver either by silver plating the object or through a process called copper depletion. The firestain under this fine silver layer, which may be a few thousandths of an inch thick, may not show up until after many years of polishing.

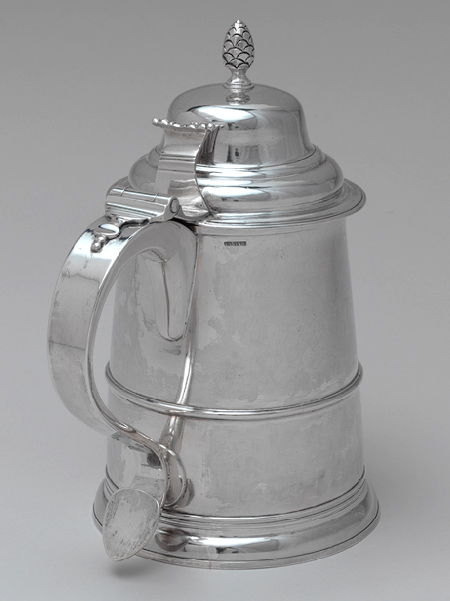

"Paul Revere, Jr.: Tankard (33.120.507)". In Heilbrunn Timeline of Art History.
New York: The Metropolitan Museum of Art, 2000–.
http://www.metmuseum.org/toah/works-of-art/33.120.507 (October 2006)

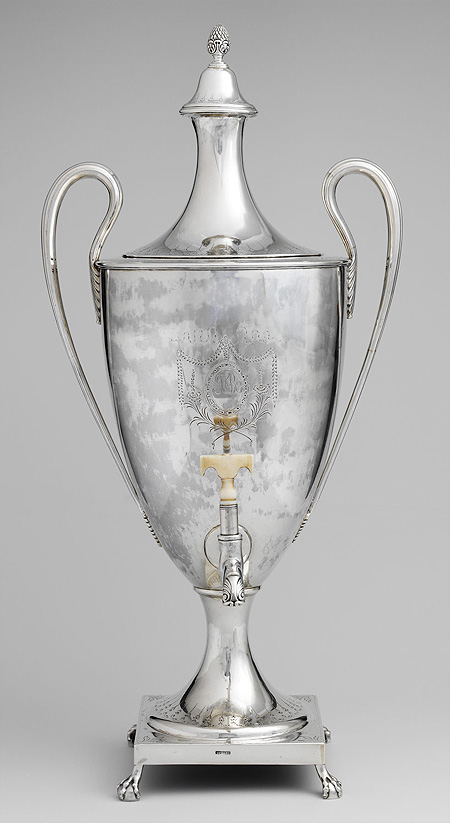

Paul Revere, Jr. Urn, The Metropolitan Museum of Art, Accession Number: 1990.226a–d

Fold Forming: Fold forming is a new, quick, easily learned way of shaping sheet metal with hand tools. Forms are derived from the natural plasticity and ductility of the metal. Lewton-Brain invented fold-forming, which is internationally recognized as a new way to work metal. Shaping is extremely efficient and rapid (many take 3-7 minutes working time). Tools are simple: fingers, hammers, anvil, and mill. Complex relief forms are made from sheets of metal often on one annealing. They resemble chased, constructed, and soldered forms, and can be made with most metals, including steel.

Forging: A process that has as its primary purpose: the alteration of the original thickness and cross-section of metal. This is usually through hammering wire, rods of metal, ingots (as would be forged into sheet by modern day Colonial Williamsburg silversmiths), or heavy sheet stock (for forming most flatware).

Forming: A process which has as its primary purpose: altering a sheet of metal so that it changes planes, three-dimensionally. Changes in the metal's thickness are incidental by-products of the process of forming.

THE Goldsmiths' Company of London was incorporated in the year 1327, and ever since that time there have existed laws against the making of counterfeit silver. This company not only assays and hallmarks London-made silver, but it also has the right to destroy spurious articles, and inflict fines upon those who have done the counterfeiting.

At one time, in England, to forge plate was punishable with death, although we do not understand that this penalty was ever enforced. However, we do know that in the year 1597 two goldsmiths who produced some counterfeit silver were put in the pillory, and each had one ear cut off.

It is not proposed to enter into the consideration of the penalties that are now imposed for counterfeiting, but to state briefly the different modes of forging plate, and the means whereby one can detect such frauds. In ancient times base metals were sometimes plated and sold as solid silver. This is seldom, if ever, done at the present time. Prior to the 1st of October, 1844, 22-carat gold wares and silver articles were hall-marked with the same marks. This uniformity of marks on the two metals was taken advantage of to defraud the public by gilding a silver piece of plate and then selling it for gold. To remedy this, a law was passed in 1844 which changed the hallmarks on gold – a crown with the figure 22 was introduced in place of the lion.

For many years silver articles have been made below the standard, and the hallmarks surreptitiously placed upon them. From 1784 to 1890, when there was a tax upon every piece of silver that was made, the Goldsmiths' Company collected the duty, indicating that it had been paid by placing upon the silver the mark of the sovereign's head. This duty at times was eighteen pence an ounce. To avoid paying it, the scheming silversmith would place (by means of counterfeit punches) the hallmarks on his own silver. This temptation to avoid taxation was removed in 1890 by the abolition of the duty. Before this was done, it was easier to convict a counterfeiter of plate, for then there were two charges on which to precede against him, namely, fraud and the evasion of taxes.

Frauds may be considered under the following heads: Subtractions, Additions, Transformations, Transpositions and Counterfeit Marks.

By the term subtraction is meant the removal of a portion of silver from an article after it has been hall-marked; as the foot from a paten in order to make it into a salver, or a spout from an urn to change it into a cup. Although in some cases this is a form of deception, it is believed that no prosecution at law would succeed where a subtraction has been made.

Under this heading are classed hall-marked articles to which additions have been made by the silversmith. The law says that consent must be obtained of the authorities before making an addition, and that if the change increases the weight of the article to more than one-third of its original weight the added silver must be hallmarked. But the addition should not change the character of the article; a foot, a handle or a spout may be added, but not so that it changes the use of the article; thus one must not alter a tankard into a coffee-pot. The commonest forms of additions are as follows:

(1). An old and rare article is plated inside to increase its weight, after which gilding is used to hide the newness of the plating. Where an old piece of plate is worth £10 ($50) an ounce (old silver is almost always sold by the ounce in England), one can readily see the temptation to increase the weight.

(2). A pierced border is often added to a plain salver in order to make it more attractive and salable. When this is done the designing silversmith does not have the border marked by the Goldsmiths' Hall, because there they would put on the modern marks, and the silversmith, of course, wants only the old marks, which, in this case, would be on the bottom of the salver.

(3). Frequently old teapots, jugs, kettles, etc., have modern chasing or engraving on them, but this is permissible and can readily be detected by the expert. It is generally done to please the owner of the article and not to deceive or enhance the value; in fact, the chasing or engraving in many cases renders the piece less valuable in that it alters its antique character. On the other hand, this surface alteration, if done in the style of the period when the piece was made, sometimes increases the value of the article by making it more decorative. A very common form of fraud is to engrave an old piece of silver with the crest and coat-of-arms of some celebrity, often adding an interesting inscription.

When a piece of plate is changed into another article it is called a transformation. This form of forgery is practiced to make an article more desirable, and it is the commonest kind of counterfeiting. Examples of transformations are as follows: Sauceboats are made into three-legged basins – chiefly Irish ones; wine funnels into pierced baskets; meat dishes into waiters; dishes, plates or waiters into bowls or baskets; pint mugs into jugs; Queen Anne saucepans into tankards; spoons into forks; skewers into handles of spoons or ladles.

When an article is transformed the marks are not touched; but in changing the form of the piece the marks often become twisted or defaced, and frequently appear in the wrong place, and sometimes upside down. In the chapters describing the different articles, much attention has been paid to the correct positions of the hallmarks on the various pieces.

A fraud is termed a transposition when a genuine mark has been removed from an old piece of silver and inserted into a new article made to resemble an old one, or put into an old piece that has no marks on it, or inserted into an old hall-marked piece after removing the original marks – in the last case the inserted marks are much older than the original. The genuine mark is taken from some small and inexpensive article; for instance, an old spoon-handle with the Dublin marks on it will be inserted into the rim of a modern Irish potato-ring.

In order to insert a mark, solder, in most cases, must be employed, and a cursory examination of the piece would not detect the presence of the solder marks. But if suspicion is aroused, the existence of solder can be discovered in one of the following ways: by using a magnifying glass, by polishing the surface of the silver and breathing on it, by applying sulfur fumes, or by means of the blowpipe. The solder is sometimes hidden by a little chasing.

A counterfeit mark is one that has been stamped by a punch other than that of the Goldsmiths' Company, or it is a genuine mark altered in one way or another. A forged punch is made of the hallmarks of a hundred years ago; this is used to mark modern silver and in that way make it appear old. Another way is to reproduce exactly an old piece of silver, including the old marks, by means of the electrotyping process. When this has been done, an expert can tell it at a glance by the appearance of the silver.

The mark of the Sovereign's head is sometimes removed to make the marks appear older. Another way of altering the marks is to remove an unimportant maker's mark and substitute a much sought after mark, such as that of Paul Lamerie, which advances the price of the article at least £2 ($10) an ounce. Modern articles, made of Britannia Standard, are sometimes sold as Queen Anne's pieces, on account of the resemblance of two of the modern marks to the old ones.

Having considered the principal methods of forging plate, the question now presents itself, how can we determine whether a piece of silver is antique or modern? We will answer that question by explaining what an expert does when his suspicions are aroused. He can have a portion of the article assayed to see if it be of the proper standard. He considers the style of the period that the hall-marks call for; frequently the counterfeiter does not pay much attention to this matter. The expert looks carefully at the piece to see how it was made – the ways of manufacturing silver have changed from time to time. The appearance of antique silver is very difficult to imitate, and although it is almost impossible to describe just what this old appearance is like, nevertheless it is quite real to one accustomed to examining plate. While the price of an article of old silver does not necessarily prove its antiquity, nevertheless if one is offered by a dealer an antique much below the current price, it may be an indication that something is wrong. Defects in an article must not be taken as signs of age, for they are very easy to produce. One must be careful that the article does not antedate its introduction; for instance, an expert would not buy an Elizabethan teapot, or a four-pronged fork of the time of Henry VIII.

Articles made since the time of Elizabeth, with only a maker's mark, should be avoided, although the unscrupulous dealer will show you in some book of reference that it is the mark of a celebrated silversmith. Such pieces are seldom genuine. The forger escapes penalties by leaving off the hall-mark, as there is no penalty for simply copying the maker's mark. Of course, no such piece could be sold openly in England, for, unless hall-marked, it is liable to conf1scation; but in America, where there are no restrictions, the opportunity for deception is easy, and forged goods are specially made for this market.

Almost every country in Europe has made spurious silver articles, or "duffers," as they are called in the trade. France has perhaps produced the cleverest, Holland the worst, and England the most. America is the last sinner, and in New York City "duffers" are being produced in small quantities. They are very poorly done, and such stupid blunders are made in the hall-marks that it is very easy to detect the counterfeiting.

On account of the unselfish energy of a few prominent silversmiths in London, backed up by the Goldsmiths' Company, some very heavy fines were recently inflicted upon several well-known dealers in forged plate. This put consternation into the camp of counterfeiters, and as a consequence there is a temporary diminution in the supply of spurious old silver.

Fused Plate: Excerpted and edited from Sheffield Plate: Its History, Manufacture and Art by Bertie Wyllie (London, 1908). Sheffield plate [fused plate] is the name applied to a variety of articles of domestic use or ornament, made of copper coated with silver by a special and now abandoned process. Many of them were actually manufactured in Birmingham, but as the secret of producing the material was discovered and brought to perfection in Sheffield, the name of that town was naturally connected with it, and thence transferred to articles constructed from it.

In 1742 a workman named Thomas Bolsover was mending the handle of a knife made of silver and copper, when, accidentally overheating it, he caused the metals to fuse and flow, and found that as a consequence the silver adhered to the copper as a thin coating. Being an intelligent man, he perceived the commercial value of his chance discovery, and began the manufacture of articles which, with all the appearance of silver, were both cheaper and stronger than those made of the pure metal. He apparently, however, confined himself to applying the silver direct to the surface of the copper after the latter had been given the shape destined to it, and was thus limited to the production of small articles such as snuffboxes, knife handles, toilet articles, etc. It was reserved to Joseph Hancock to realize that by making the plate first and working it into the desired form afterwards he could almost indefinitely extend the possibilities of the material.

The process in its final and highest development was as follows. The groundwork was a mixture of copper and brass, either metal alone having serious defects. This was cast into an oblong ingot, one to 12 inches in thickness, 21 inches in breadth, and of a length regulated by the size of the plate desired. The surface of this was brought by planing, grinding and other means to the highest possible pitch of smoothness and evenness. A sheet of silver of a finer quality than standard, with a thickness up to one inch according to the quality aimed at, and of the same superficial extent as the copper bar, was leveled and polished in the same way and accurately fitted to it, neither surface at any time being soiled by contact with the workman's fingers. A sheet of copper, rather smaller than the other two and in. thick was laid upon the silver, and on the top of all was added a piece of iron, four inches thick, one inch wide, and a little shorter than the three others, to protect them from the direct contact of the strong iron wire with which all were firmly bound together. The junction of the edges of the silver and copper blend was treated with a flux of borax and the whole was submitted to the heat of a furnace until the silver was seen to be melting, when it was instantly removed, care being taken to avoid pressing upon the upper or lower surfaces, as the liquid silver in that case would have been squeezed out from between the two enclosing plates and the operation ruined. It was then left to cool, and after being thoroughly cleansed presented the appearance of a copper ingot with one silver side. This was passed again and again between gradually approximated rollers, with occasional annealing, until the desired thickness had been attained. The great extension of surface thus produced had the drawback of exaggerating any small defect in the union of the two metals, increasing it to a blister of an inch or more in diameter. It was, however, fortunately found easy to remedy this. The blister if unbroken was heated, pricked, and then rubbed level with a burnisher; if, as sometimes happened, the silver had flaked away it was replaced by coatings of pure leaf silver rubbed in with a burnisher. The plate when passed as flawless was cut into the desired form and molded as far as possible into shape, the edges where necessary being soldered. At first only one surface of the copper was plated with silver and thus its usefulness was necessarily restricted, but it was a simple matter to apply the silver to both sides and thenceforward whatever was made in solid metal could be reproduced in plate, and firm after firm went into the business, ever and anon introducing further improvements.

The possibility of embossing the metal beyond a certain point without fracturing the coating of silver was remedied by casting or stamping the raised ornament in silver, filling the hollows with a form of pewter, and soldering the result to the appropriate part of the general design. Another difficulty, the concealment of the inner core of copper which was seen as a thin red line when a cut edge was exposed, was met about 1784 by George Cadman, who adopted the practice of soldering on an edging, generally ornamented, of solid silver so as to cover the junction, and the presence of this is one of the trustworthy tests by which genuine Sheffield plate may be recognized. The labor of rolling the metal by hand was done away with about 1760, by the firm of Tudor, Leader & Sherburn, who first employed horse-power, and for more than half a century the trade both in Sheffield and Birmingham continued to flourish. In 1736 there were under 10,000 inhabitants in the former city; in 1760 when Horace Walpole passed through it, buying for two guineas a pair of candlesticks of the local plate, which he thought "quite pretty," and pronouncing it to be "one of the foulest towns in England," there were two-and-twenty thousand who remitted eleven thousand pounds a week to London.

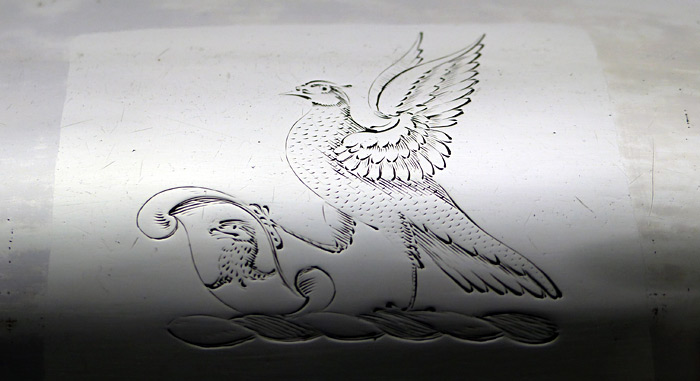

Below is an engraving plate in solid sterling that was set-in a meat cover. This practice is used so gravers won't cut though the sterling layer and into the copper that is used in fused plate objects.

It would be impossible, were it desirable, to enumerate all the varieties of the articles turned out, or to overpraise the beauty and elegance of most of them. The designs were identical with those in favor with the gold and silversmiths of the period, which was happily one when exceptionally good taste prevailed. The appreciation of light and well-proportioned curves and the skillful employment of well-contrived pierced work are conspicuous features.

The success was, however, doomed to be short lived and to come to an end as swiftly as it had grown up. In the year 1800 W. Cruikshank was already experimenting with a process of electro-plating, and in 1837 Mr. Spencer in England, and in 1838 Professor M. H. Jacobi (1801-1874) in Russia, working independently, succeeded in contriving methods which could be made commercially profitable. Two years later Messrs Elkington in London and M. de Ruolz of Paris started in business on those lines, and the slower and consequently more costly manufacture at Sheffield and Birmingham rapidly died out.

Of recent years old Sheffield plate after long neglect has come into fashion again, and genuine articles in good condition have greatly gone up in value, often exceeding in cost those of more modern date in sterling silver. Concurrently fraudulent imitation has regrettably increased. In some cases the whole object is a modern reproduction in electro-plate, but more often really old articles from which the original plating has been worn off in course of time have been replated, both equally being in the eyes of the connoisseur, unworthy of serious attention and comparatively valueless. The difference after a little experience is not difficult to detect, though inexpressible in words. The pressure to which the Sheffield plate was submitted produces a definite color and texture which is absent from the surface produced by the deposit of silver in a liquid medium by electrical means, and the coat of silver is spread by the latter uniformly over the whole surface without a break, while in the former the junction between the embossed ornaments and the silver strips covering the cut edges may often be detected on careful examination.

Georgian Silver: The Georgian period refers to the consecutive reigns of 4 King Georges; George I: (August 1, 1714 – June 11, 1727), George II: (June 1727 – 25 October 1760), George III: (October 25, 1760 – 29 January 29, 1820), George IV: (January 29, 1820 – 26 June 26, 1830). Find a complete list of European rulers here.

This period, of over a hundred years, was long enough to see massive economic, social and political change. Likewise the silverware of the period varies massively in style and technique. In the George I period and the middle of George III's reign, we find some of the simplest silverware designs ever produced in English silver whilst in the late George III period and throughout George IV's reign we find some of the most ornate pieces of silverware.

German Silver: An alloy that resembles sterling, but contains only copper, zinc, and nickel.

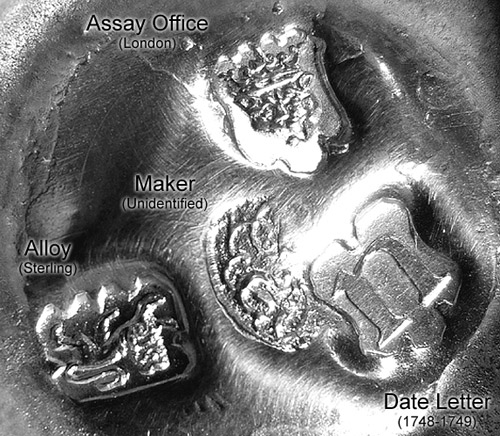

Hallmark: A mark or series of marks stamped or laser-engraved by a country's assay office indicating the quality of the precious metal tested (e.g., "Sterling," ".925," ".840," ".800," or an image of a rampant lion—indicating sterling as used in Great Britain). The object may also contain the country, maker's mark, housemark, duty mark, import mark, etc.

• Assay Office: crowned leopard's head (London)
• Alloy: rampant lion (shown here upside down) indicates sterling
• Date Letter: n (1748-1749)
• Maker: unidentified because it was carelessly over-stamped with the date letter
• Additonal British examples

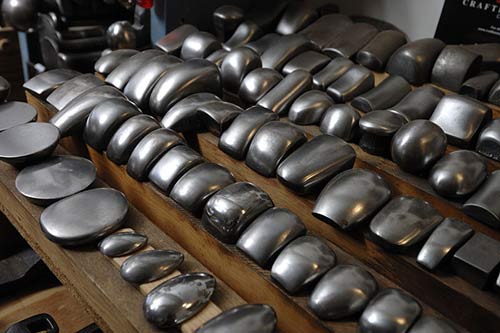

Head: A short, polished, cast metal mushroom-type stake that fits into a horse and is used for planishing and burnishing metal objects over.

Horse: Held in a vise, this straight or L-shaped holding devise accommodates heads. The length of a horse varies depending on the size or depth of the piece being fashioned. See some horses here.

Housemark: A mark stamped or laser-engraved by the company (e.g., "Gorham," "Reed & Barton," "Tiffany," "Kalo") that created the object for its own line or for a retailer (e.g., "Shreve, Crump & Low," "J.E. Caldwell Co."). In addition, there may also be a maker's mark, indicating the company's craftsman who created or oversaw the creation of the object. The below example identifies the object's maker as Gorham Manufacturing Company from Providence, RI; the metal quality (sterling); and the object's design number (A2150).

Insulators: Coffee and teapots are normally found with ivory, plastic, hardwood, or compressed fiber positioned between the body and handle to block heat transfer of the liquid to the handle. Insulators can also be found on other objects, such as water kettles and burners, that may transfer heat to the handle.

Laser Welding: A technique used to join or fill metal through the use of a laser. The beam provides a concentrated heat source, allowing for narrow, deep welds and high welding rates.

Maker's Mark: Sometimes called a "touchmark." The name or artistic mark stamped, engraved, or laser-engraved on an object created by an individual silversmith or jeweler. The mark below is that of Jeffrey Herman.

8700 BC
4000
3000
2000
1600
1300
1000
200 AD
1260
1634-1776
1776-1868
1717
1738
1774
1825
1868
1912

Copper
Gold
Silver
Bronze is used for weapons and armor
Crude iron metallurgy developed by the Hittites
Steel invented
Pewter first used in China and Egypt
Cast iron widely used in Han Dynasty China
Sterling first used in Europe
Sterling used in America per the English standard
Coin silver widely used in America
Iron invented by Abraham Darby
Zinc processed by distillation from calamine and charcoal patented by William
ChampionManganese discovered by Johann Gottlieb Gahn
Metallic aluminum produced by Hans Christian Ørsted
Sterling standard permanently adopted in United States
Stainless steel invented by Harry Brearley
Silver Standards Around the World

Model Making: Numerous processes and materials used to produce casting patterns that will then be duplicated in metal or other materials.

Mokume-Gane: Laminated metals that have been fused or brazed together like a sandwich, and passed through a flat or wire-forming rolling mill to make the material easier to fabricate or raise. The sandwich or "billet" can also be forged without the use of the rolling mill. Patterns are then punched, filed, and hammered to produce a desired pattern. See examples of Mokume here.

Nickel Silver: An alloy that resembles sterling, but contains only copper, zinc, and nickel.

Niello: A black metallic alloy of sulfur, copper, silver, and usually lead, used as an inlay on engraved or carved metal. The Egyptians are credited with originating niello decoration, which spread throughout Europe during the Middle Ages.

Ormolu: An 18th-century process whereby powdered gold is mixed with mercury and the resulting paste is brushed onto a copper, brass, or bronze cast or fabricated form. The form is then fired at a temperature that causes the mercury to evaporate, leaving a gold deposit on the surface. The gold is burnished or matted to give the greatest effect of metallic brilliance. (During the second half of the 19th century, pieces were gilded by electroplating, and these are often inaccurately referred to as ormolu.)

Patina: In the decorative metals world, patina can mean three things: 1. The fine scratches on an object that have developed over time from handling and polishing, 2. The natural darkening that is seen in the recesses of ornamental pieces and engraving, 3. A factory-applied chemical used to darken the recesses of a design to enhance its details and give it a three-dimensional look. See an example here.

Patinate / Repatinate: To apply or reapply a chemical to darken the recesses on ornamental pieces and engraving that had naturally developed over time. This process is sometimes applied to objects that have had their darkening removed from dishwashers or chemical strippers such as Tarn-X. You can see the results of repatinating here.

Planishing: The act of hammering or refining the surface of a metal object with highly polished hammer faces. This process refines the surface after raising and may be used as a decorative element. Great care must be used, for even a speck of dust will make an impression in the metal being hammered. See an example of a planished surface here.

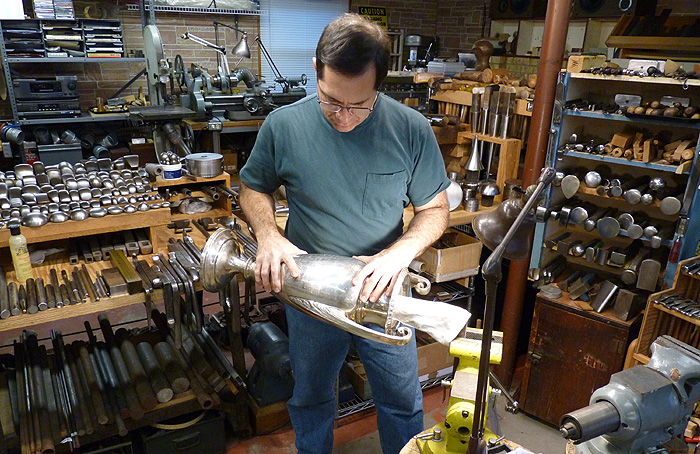

Polishing: The process of refining a metal surface by use of abrasive compounds applied by hand or a polishing wheel attached to a long-spindled motorized arbor which runs at high speed. Various finishes may be obtained with a wide variety of abrasive compounds applied to the polishing wheels such as rouge–this compound imparts the brightest finish. More abrasive compounds will produce less reflective finishes, emphasizing the object's form.

Preservation: To stabolize an object from further deterioration. This may entail using an archival wax to maintain the surface finish.

Pseudo-Hallmark: A series stamps found on plated or sterling objects made to resemble a genuine British hallmark.

Raising: The technique of forming a flat sheet of metal over a cast iron T-stake or head, forming and compressing the metal to take a hollow form. This labor-intensive process is the purest form of silversmithing.

Refinish: To make an object look new by removing all scratches and imperfections.

Repoussé: A technique used to roughly emboss a metal object with ornament from the back or inside with larger punches than those used in chasing. This process does not remove metal, but reshapes it. Repoussé is demonstrated here. The technique is demonstrated in the first part of the video. See an example on a Tiffany piece here.

Restoration: To either make an object or damaged area on that object look new, or to make it look its age without any noticeable damage or repairs.

Rolling Mill: A hand, waterwheel, or motor-driven mill with polished or patterned hardened steel rollers that reduce the thickness or impart a texture on metal sheet or wire. A rolling mill functions like a hand cranked clothes ringer.

Paul Revere was rolling copper plate with the assistance of water power as early as 1801. In 1803, the American navy commissioned Revere to roll copper to sheath America's naval war ships.

Scratch Brush: A long-spindled motorized arbor using fine wire wheels rotating at slow speed, burnishing the surface of a metal object after soldering. Soapy water is used as a lubricant between the wheel and object. May also be used as a texturing wheel to soften the luster of metal.

Silver
I. Introduction

Silver, symbol Ag, white, lustrous metallic element that conducts heat and electricity better than any other metal. Silver is one of the transition elements of the periodic table. The atomic number of silver is 47.

Silver has been known and valued as an ornamental and coinage metal since ancient times. Silver mines in Asia Minor were probably worked before 2500BC. The alchemists called the metal Luna or Diana after the goddess of the moon and ascribed to it the symbol of a crescent moon.

II. Properties
With the exception of gold, silver is the most malleable and ductile of all metals. Its hardness ranges between 2.5 and 2.7; it is harder than gold but softer than copper. Silver melts at about 962° C (about 1764° F), boils at about 2212° C (about 4014° F), and has a specific gravity of 10.5. The atomic weight of silver is 107.868.

Chemically silver is not very active. It is insoluble in dilute acids and in alkalies but dissolves in concentrated nitric or sulfuric acid, and it does not react with oxygen or water at ordinary temperatures. Sulfur and sulfides attack silver, and tarnishing is caused by the formation of silver sulfide on the surface of the metal. Eggs, which contain a considerable quantity of sulfur as a constituent of protein, tarnish silver extremely quickly. Small amounts of sulfide, which occurs naturally in the atmosphere and which, as hydrogen sulfide (H2S), is added to natural gas used domestically, tarnish silver. The black silver sulfide (AG 2S) is among the most insoluble salts in aqueous solution, a property that is exploited for separating silver ions from other positive ions.

III. Occurrence
Silver ranks about 66th among elements in natural abundance in crustal rocks. It occurs in the pure state to a small extent; the most notable deposits of native silver are in Peru and Norway, where the mines have been worked for centuries. Pure silver is also found associated with pure gold in the form of an alloy known as electrum, and considerable amounts are recovered in the processing of gold. Silver is usually found combined with other elements (of which sulfur is the most predominant) in minerals and ores. Some of the important silver minerals are cerargyrite (or horn silver), pyrargyrite, sylvanite, and argentite. Silver also occurs as a constituent of lead, copper, and zinc ores, and half the world production of silver is obtained as a by-product in the processing of such ores. Practically all the silver produced in Europe is obtained from the lead sulfide ore, galena. In the United States relatively few mines are worked for their silver alone—the silver is mined in conjunction with lead, copper, and zinc. In 1988, U.S. mines produced an estimated 53 million troy oz. of silver, about 12 percent of the estimated 444 million troy oz. produced worldwide. Most of the silver mined in the world comes from Mexico, Peru, Canada, the United States, and Australia. The leading silver-producing states in the United States are Nevada, Idaho, Montana, and Arizona; they accounted for about 71 percent of the silver mined in the United States in 1989.

IV. Metallurgy

Silver is usually recovered from silver ores by roasting the ore in a furnace to convert the sulfides to sulfates and then chemically precipitating metallic silver. Several metallurgical processes are used to extract silver from ores of other metals. In the amalgamation process, liquid mercury, which forms an amalgam with the silver, is added to the crushed ore. After the amalgam is washed out of the ore the mercury is removed by distillation, leaving metallic silver. In lixiviation methods the silver is dissolved in a solution of a salt, usually sodium cyanide, after which metallic silver is precipitated by bringing the solution in contact with metallic zinc or aluminum. For the Parkes process, which is used extensively in separating silver from copper and lead ores, see Lead. The impure silver obtained in the metallurgical processes is usually refined by electrolytic methods or by cupellation, a process that involves removing impurities by vaporization or absorption.

V. Uses

The use of silver in jewelry, tableware, and as coinage is well known. The metal is usually alloyed with small amounts of other metals to make it harder and more durable. In the United States, coin silver was an alloy of 90 percent silver and 10 percent copper until 1965, when the silver content was reduced to 40 percent for half dollars; silver was eliminated from dimes and quarters after 1964. In 1970 the U.S. government sold the last of its marketable silver, which in earlier periods of U.S. economic history had been used to support a monetary system of bimetallism. Sterling silver for tableware and other solid-silver objects is 92.5 percent silver and 7.5 percent copper. Silver is used to coat smooth glass surfaces for mirrors by vaporization of the metal or by precipitation from a solution; however, aluminum has largely replaced silver in this application. Silver is also widely used in the circuitry of electrical and electronic components. Colloidal silver, dilute solutions of silver nitrate (AgNO3), and some insoluble compounds, such as potassium, are used in medicine as antiseptics and bactericides. Argyrol, a silver-protein compound, is a local antiseptic for the eyes, ears, nose, and throat.

The silver-halide salts—silver bromide, silver chloride, and silver iodide—which darken on exposure to light, are used in emulsions for photographic plates, film, and paper. The salts are soluble in sodium thiosulfate, which is the compound used in the photographic fixing process.

Contributed By: Seymour Z. Lewin, M.S., Ph.D., Professor of Chemistry, New York University.
"Silver," Microsoft® Encarta® Online Encyclopedia 2000
http://encarta.msn.com © 1997-2000 Microsoft Corporation. All rights reserved.

Silver as an Antimicrobial

Antimicrobial: Destroying or inhibiting the growth of microorganisms and especially pathogenic microorganisms (In Merriam-Webster Online Dictionary. Retrieved November 30, 2008)

Silver is widely used in topical gels and impregnated into bandages because of its wide-spectrum antimicrobial activity. The antimicrobial properties of silver stem from the chemical properties of its ionized form, Ag+. This ion forms strong molecular bonds with other substances used by bacteria to respire, such as molecules containing sulfur, nitrogen, and oxygen. Once the Ag+ ion complexes with these molecules, they are rendered unusable by the bacteria, depriving it of necessary compounds and eventually leading to the bacteria's death.

Silverplate: silver-plated objects may have a wide variety of marks, or may have no marks at all. The following terms all indicate an item is silver-plated: A1, AA, Coin Plate, Deepsilver or Deep Silver, Double or Double Plate, Electroplate, EP, EPC, EPBM, EPNS, EPWM, Extra Coin Plate, Extra Plate, Plate or Plated, Quadruple or Quadruple Plate, Reinforced Plate, Silver Plate or Silverplate, Silver Soldered, Sterling Inlaid, Sterling Plate, Triple or Triple Plate, XII, XIV, XS.

Silversmith: One who fashions silver objects and wrought items such as forged flatware. The first silversmiths who settled in this country set up our banking system and produced its first coinage.

Sinking: The hammering of a flat piece of metal into a concave hemispherical shape in the top of a tree stump or any dished form. A small bowl shape is formed in the center of the sheet producing a lip, enabling the piece to "ride" the end of a raising stake, aiding in the raising process.

Snarling: The embossing from underneath or inside an object with a long-armed steel tool, with one end placed in a vise. Snarling is accomplished by placing a form over the snarling iron's tip (which may be any shape) and tapping the back end of the arm which is secured in the vise. The vertical vibration that results gives a "kick," raising a bump on the outside of the object. This technique is usually used in conjunction with chasing.

Soldering: A process in which two or more metal items are joined together adhesively, by melting and flowing a filler metal into the joint, the filler metal having a relatively low melting point. Soft soldering is characterized by the melting point of the filler metal, which is below 800 °F. The filler metal used in the process is called solder. Soldering is distinguished from brazing by use of a lower melting-temperature filler metal; it is distinguished from welding by the base metals not being melted during the joining process. In a soldering process, heat is applied to the parts to be joined, causing the solder to melt and be drawn into the joint by capillary action and to bond to the materials to be joined by wetting action. After the metal cools, the resulting joints are not as strong as the base metal, but have adequate strength, electrical conductivity, and water-tightness for many uses. This technique does not possess the strength of brazing solders when joining higher temperature metals such as silver. See a soldering set-up here.

Spelter: While sometimes used merely as a synonym for zinc, is often used to identify a zinc alloy. In this sense it might be an alloy of equal parts copper and zinc used for hard soldering and brazing, or as an alloy, containing lead, that is used instead of bronze. In this usage it was common for many 19th-century cheap, cast articles such as candlesticks and clock cases and early 20th-century Art Nouveau ornaments and Art Deco figures.

Spinning: The first evidence of metal spinning techniques being used for the forming of metals occurs in the Middle Ages. During this time, the power for the lathe on which the vessels were being formed was provided by a second person turning a large wheel connected to the lathe spindle by belt. Only very thin, soft metals could be formed by the metal spinner with his stick-type tools. However, despite the limitations, this method of metal spinning represented a significant advance on the techniques used until then, which were limited to either casting or hammering.

Later, the metal spinning process advanced as both water power and steam power were used to drive the main spindle of the metal spinning lathe, but the hand spinner was still required to provide both the motive power and the forming skill necessary to transform a flat blank into the finished hollow component. This process was introduced to America about 1840.

The next step was the development of electric power assistance for the spinner so that he could concentrate solely on the metal spinning technique. The real breakthrough came with the use of the hydraulic power and the change from the stick-type tool to the use of a roller. This permitted the metal spinning of components in harder metals of heavier gauge and led to the development of the newer techniques of shear forming and flow forming. However, the final result on each component was still dependent on the skill of the individual operator and such factors as varying levels of concentration, fatigue, experience etc. See a video here and here.

Spring Hammer: A 5' cast iron beam supporting a long-handled, highly-polished pivoting hammer with a 3" diameter face. The hammer is mounted on a spring mechanism allowing the hammer head to bounce off a highly polished adjustable anvil used to flatten the bottoms of trays and anything else that requires a perfectly flat surface. The spring hammer head bounces off the anvil perfectly flat, avoiding a costly crescent-shaped miss-hit of a hand-held hammer head's edge. See a spring hammer here.

Stainless Steel: This is essentially a low carbon steel which contains at least 10% chromium by weight. It is this addition of chromium that gives the steel its unique stainless, corrosion-resisting properties. The chromium content of the steel allows the formation of a rough, adherent, invisible, corrosion-resisting chromium oxide film on the steel surface. If damaged mechanically or chemically, this film is self-healing, providing that oxygen, even in very small amounts, is present. The corrosion resistance and other useful properties of the steel are enhanced by increased chromium content and the addition of other elements such as molybdenum, nickel and nitrogen. Better quality stainless flatware contains 18% chromium and 8% nickel.

Carbon steel rusts when exposed to air and moisture. This iron oxide film (the rust) is active and accelerates corrosion by forming more iron oxide. Stainless steels have sufficient amounts of chromium present so that a passive film of chromium oxide forms which prevents further surface corrosion and blocks corrosion from spreading into the metal's internal structure.

Harry Brearley of the Brown-Firth research laboratory in Sheffield, England, is most commonly credited as the "inventor" of stainless steel. In 1913, while seeking a corrosion-resisting alloy for gun barrels.

Stake: Any polished cast iron or steel tool placed in a vise and is used for forming and planishing metal over. This tool is generally large enough to be used without a horse. See stakes here, and horses here.

Sterling Silver: Most American sterling is marked Sterling, 925, or 925/1000. Sterling silver is a minimum of 925 parts pure silver to every 1000 parts.

Prior to the enactment of the Stamping Act of 1906, there were no national laws requiring silver objects to be marked in any manner, although quite a few states had already adopted their own laws. The Stamping Act of 1906 required all items being sold as sterling silver to be marked as sterling.

Prior to 1906, marking a piece Sterling or 925 was at the discretion of the maker. Most makers, however, were proud of the fact their objects were made of sterling, and boastfully marked their items as such.

A piece may be marked 935, 950, or with another higher grade. This is still considered sterling silver, but has a higher silver content than that required by the sterling standard of 925.

The term English Sterling was occasionally used on sterling objects during the coin silver era prior to 1868.

Also during the time when coin silver was the predominant silver grade in the U.S., the Maryland Legislature passed the Assay Act, requiring all silver in Baltimore to be assayed. In 1830 the law was changed to no longer require the assaying of silver, but then required makers to mark their silver with quality designations. Silversmiths outside of Baltimore also started adopting this practice. Sterling silver is 11 ounces 2 pennyweight silver per 12 ounces Troy, so sterling silver from this place and time is marked 11.2 or 11-2.

Surface Gauge: A vertical steel rod mounted with an adjustable arm fastened to a heavy base. The adjustable scribe-type pivoting arm can be raised or lowered to check the height or to scribe a level line around an object in order to mount a wire or anything else that must be level. Often used on top of a surface plate. Surface gauges can be seen here.

Surface Plate: A perfectly level steel, cast iron or granite table of any dimension; used to check the level and flatness of an object. Often used in conjunction with the surface gauge. See a surface plate here.

T-Stake: Any polished, cast iron or steel tool in the form of an elongated "T" and used in a vise for raising, forming or planishing metal. See t-stakes here.

Taps & Dies: Metalworking taps and dies were often made by their users during the 18th and 19th centuries (especially if the user was skilled in toolmaking), using such tools as lathes and files for the shaping, and the smithy for hardening and tempering. Thus builders of, for example, locomotives, firearms, or textile machinery were likely to make their own taps and dies. During the 19th century the machining industries evolved greatly, and the practice of buying taps and dies from suppliers specializing in them gradually supplanted most such in-house work. Joseph Clement was one such early vendor of taps and dies, starting in 1828. With the introduction of more advanced milling practice in the 1860s and 1870s, tasks such as cutting a tap's flutes with a hand file became a thing of the past. In the early 20th century, thread-grinding practice went through significant evolution, further advancing the state of the art (and applied science) of cutting screw threads, including those of taps and dies. (Excerpted from Wikipedia)

Taperstik: A short candlestick which holds thin candles (tapers), used for melting wax and stamping with a wax stamp to seal envelopes, lighting pipes, and other candlesticks.

Tarnish: Tarnish, in regards to silver, is a thin layer of corrosion that forms from a chemical reaction on the surface of an object. This layer consists mainly of black silver sulfide caused by the silver's reaction with sulfur-containing compounds such as hydrogen sulfide in the air. Tarnish appears as a yellow, gray, or black film on objects. After tarnish forms, the corrosion process slows as the silver sulfide layer thickens.

Any sulfur-containing compound with the sulfur in a reduced oxidation state (e.g., hydrogen sulfide, sulfur, carbonyl sulfide) will cause silver to tarnish. Moisture also plays a role. The higher the relative humidity, the faster silver tarnishes (if sulfur-containing compounds are present). However, even if there is no moisture in the air but it is contaminated with hydrogen sulfide, the silver will still tarnish because there is a direct reaction (water not involved) between the silver and the hydrogen sulfide. So it is not good enough to remove only the moisture because the silver will still tarnish if there is hydrogen sulfide present (or other tarnishing gases).

Tussie-Mussie: A small, round bouquet of flowers and/or herbs. They are sometimes contained in a cone-shaped hand-held or lapel vessel.

Vermeil: A French term for a sterling object that is totally gold-plated. Also: silver-gilt (silver object entirely gold-plated) or silver parcel-gilt (silver object partially gold-plated).

Vinaigrette: A small metal perfume container usually made of gold or silver and containing a pierced metal tray beneath which was placed a piece of sponge soaked in an aromatic substance such as vinegar combined with lavender. Vinaigrettes were made as boxes and many more novel forms from the late 18th to the late 19th century. Most English examples were made in Birmingham.

Weighted Sterling: Reinforced holloware and dresserware. These pieces are most often filled with pitch, but may also contain plaster, lead, or some other material because the metal can be as thin as .003". If these pieces were not weighted, they would almost collapse! The total weight of the silver alone in a large candelabra may be as low as a few ounces. Weighted objects have been produced for decades, allowing more consumers to afford silver. In most cases, objects of this type are impractical because their structural integrity often suffers with daily use and cleaning. More on weighted sterling can be found here.

Well-and-Tree Platter: A large platter having a depressed design of a tree through which meat juices flow into a large depression at one end.

White Metal: An alloy of tin and other metals. White metals contain no silver. The following terms are for different types of white metal; some are trade names, others are generic terms: Alaska Silver, Alpaca or Alpacca Silver, Aluminum Silver, Austrian Silver, Brazil or Brazilian Silver, Bristol Silver, Burmaroid Silver, England Silver, German Silver, Indian Silver, Japanese Silver, Laxey Silver, Mexican Silver, Nevada Silver, Nickel Silver, Paktong, Pearl Silver, Potosi Silver, Solid G Silver (aka German Silver), Sonora Silver, Tyrol Silver, Venetian Silver, Yukon Silver.

The Wood Database: A fantastic resource for identifying wood and offering additional pertinent information on each species.

Ubaldo Vitali's MacArthur Genius Award	Ubaldo Vitali on his life as a silversmith
Randy Stromsöe talks about his tools	Randy Stromsöe on annealing
John Marshall on creating a tea and coffee service	Jeff Herman demonstrates cleaning and polishing silver
George Cloyed forging a teaspoon at Williamsburg	George Cloyed, master silversmith at Williamsburg
William Frederick biography	Geoff Blake at Old Newbury Crafters

Georg Jensen's Jesper Nordø (Denmark)	Chloe Darke at Old Newbury Crafters (USA)
Stephen Smithers (USA)	Theresa Nguyen (Great Britain)
Theresa Nguyen (Great Britain)	Miriam Hanid (Great Britain)
Bruce Russell (Great Britain)	Thalen & Thalen (Belgium)
Thalen & Thalen (Belgium)	The silversmith of Williamsburg (USA)
